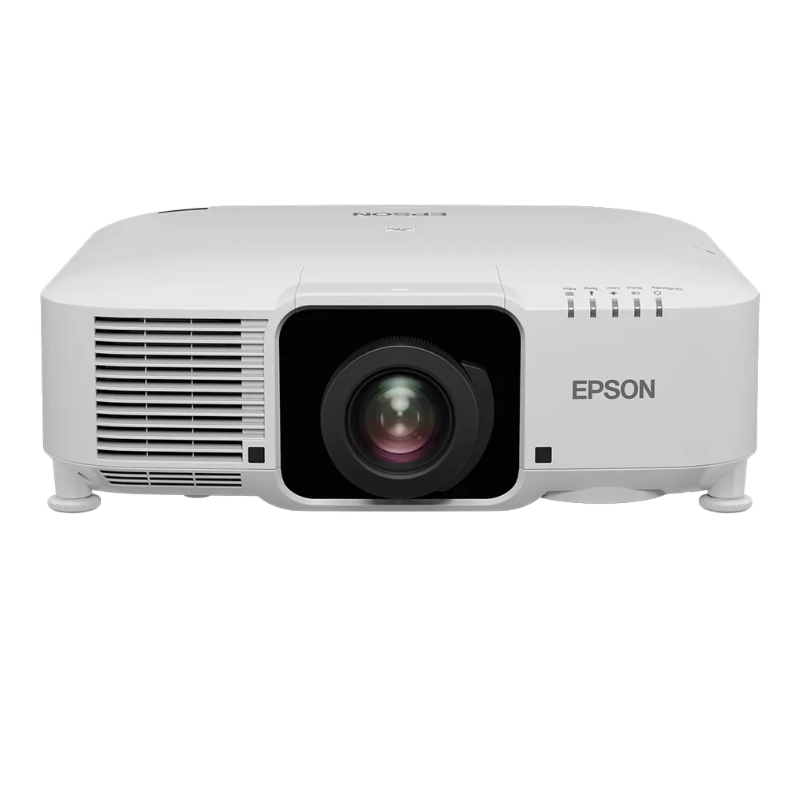

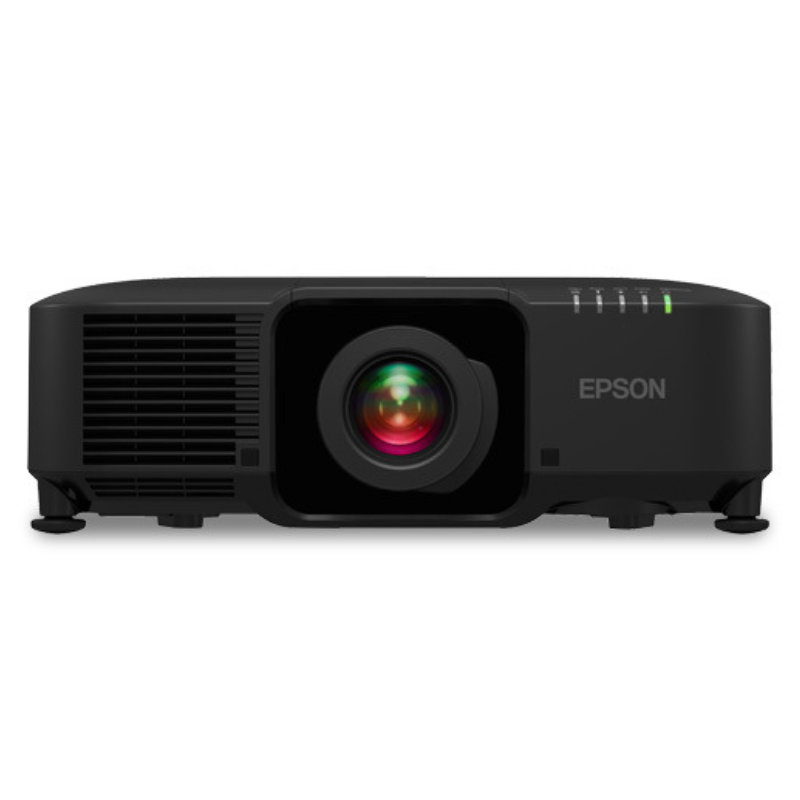

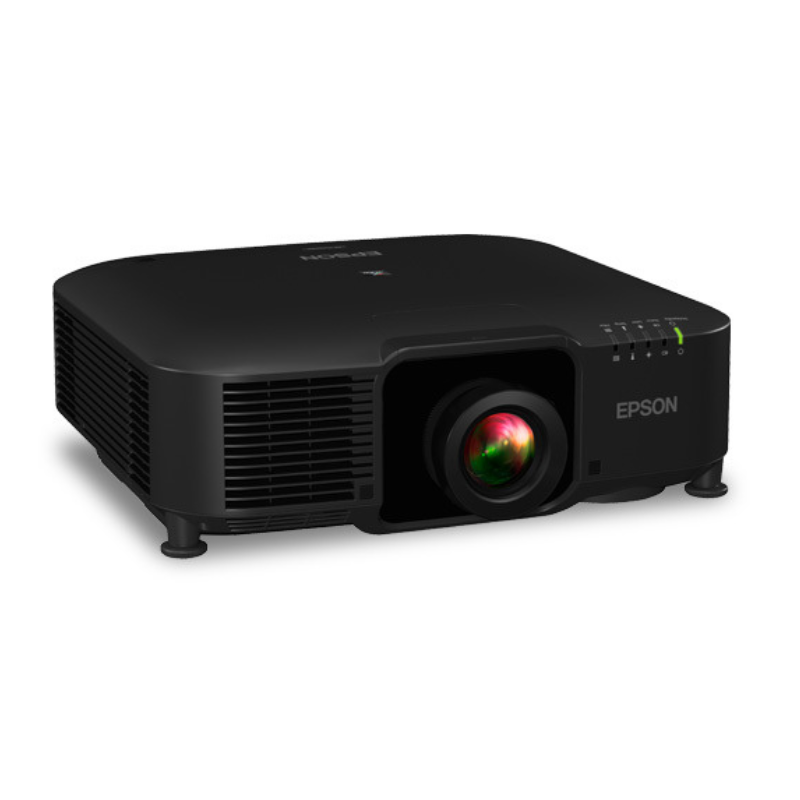

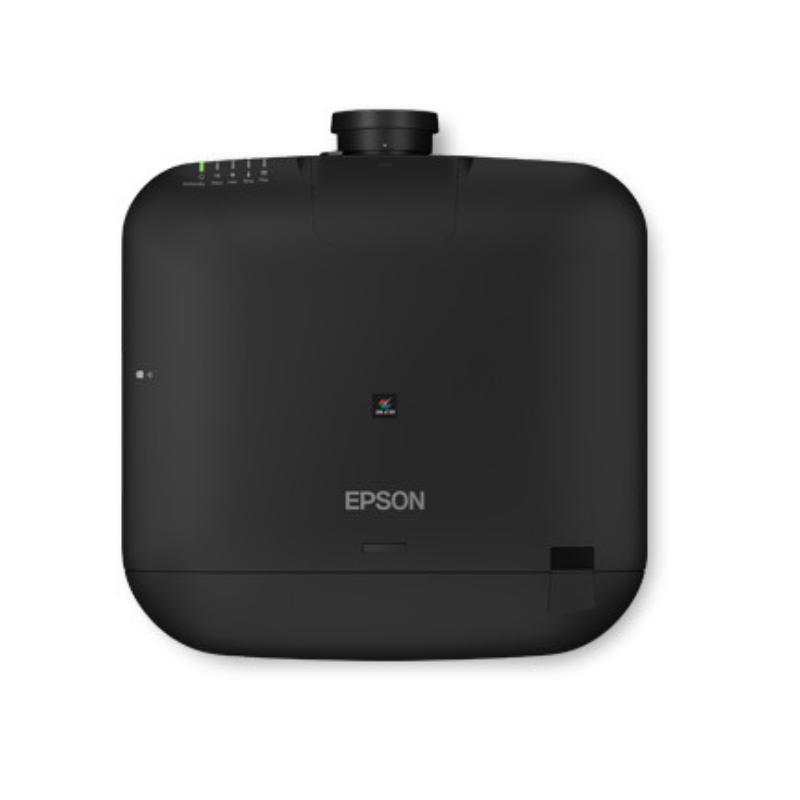

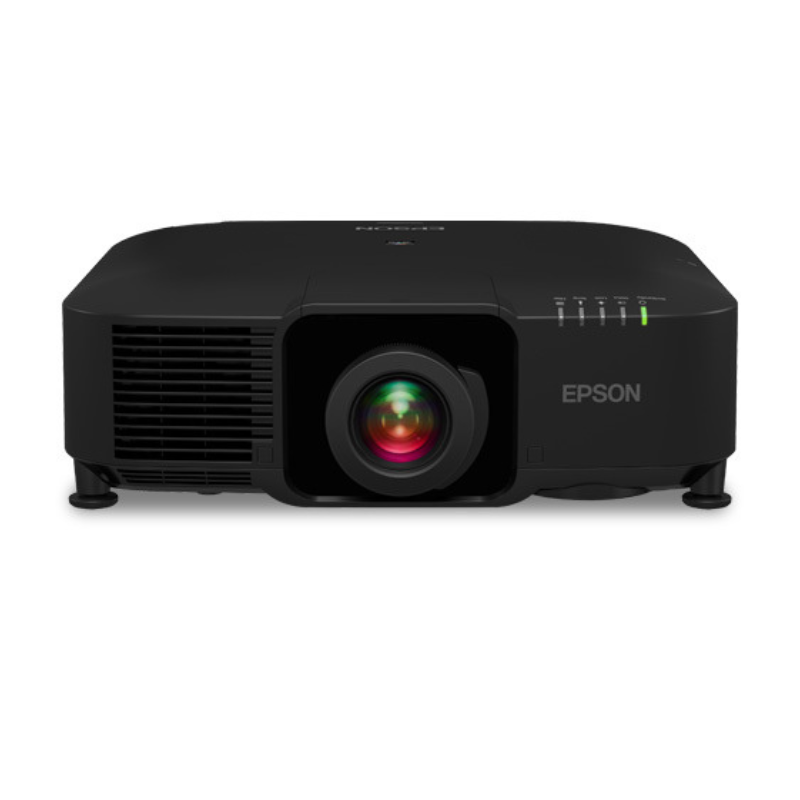

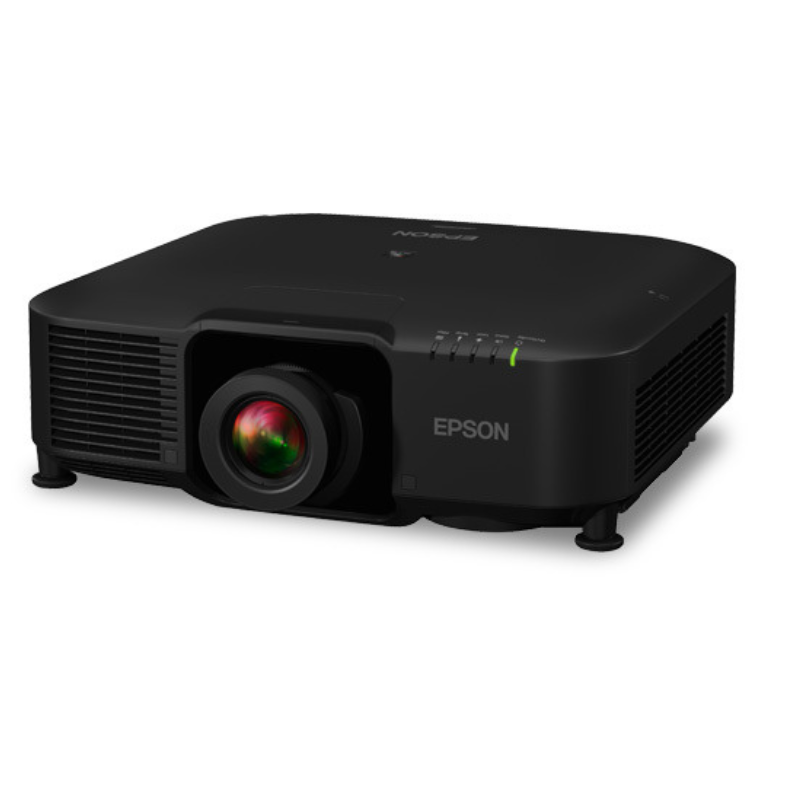

EB-PQ2010B 10,000-Lumen 4K 3LCD Laser Projector (Each)

The EB-PQ2010B features a virtually maintenance-free 20,000-hour laser light source and air filter². The projector provides frame interpolation for fast-moving objects, as well as HDR support³ and scene adaptive gamma correction for lifelike images. The EB-PQ2010B pairs with 10 optional powered lenses (sold separately) to simplify installation and includes a host of premium features for fast setup, such as built-in NFC functionality⁴, and an optional attachable PixAlign™ camera to streamline multi-projector setups.

• • World's smallest and lightest 10,000-lumen 4K projector¹
  • 10,000 lumens of equal white and color brightness⁵
  • 4K Crystal Motion technology
  • Virtually maintenance-free 20,000-hour laser light source²
  • High native contrast for a realistic display

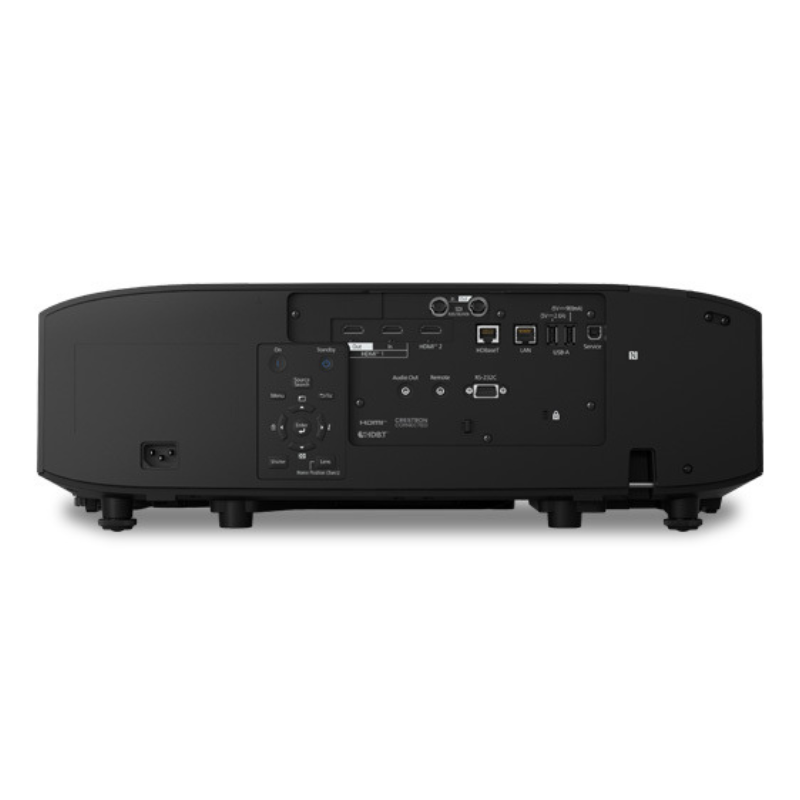

• Enhanced connectivity — HDMI^® two in and one out; 12G-SDI in/out for daisy chaining and signal monitoring; features automatic input switching when input signal is disrupted
• Low latency performance and high frame rate support — high-speed graphics chip and panel drive technology enable high frame rate 4K playback

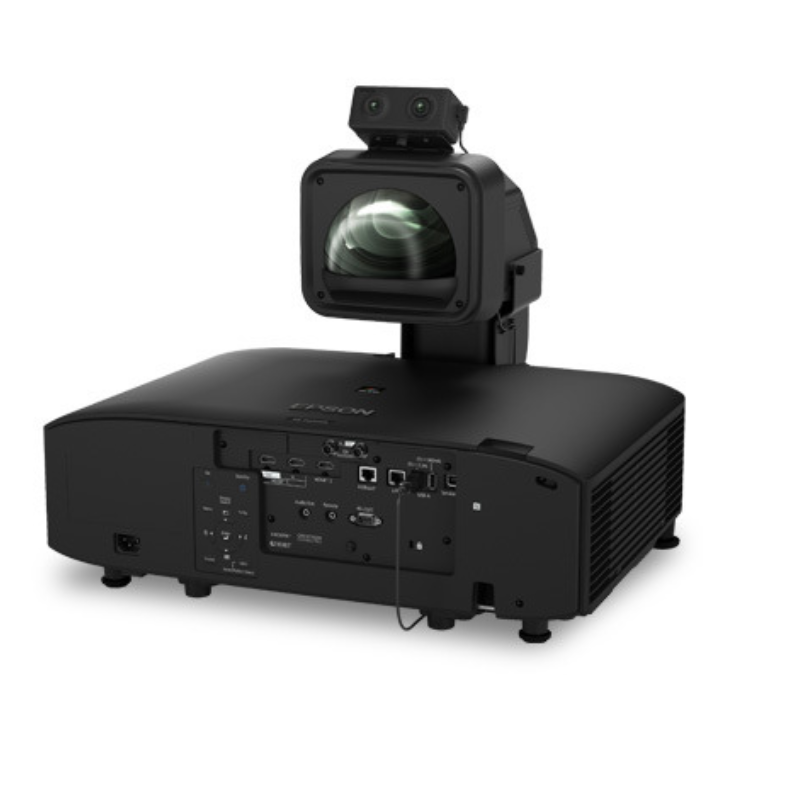

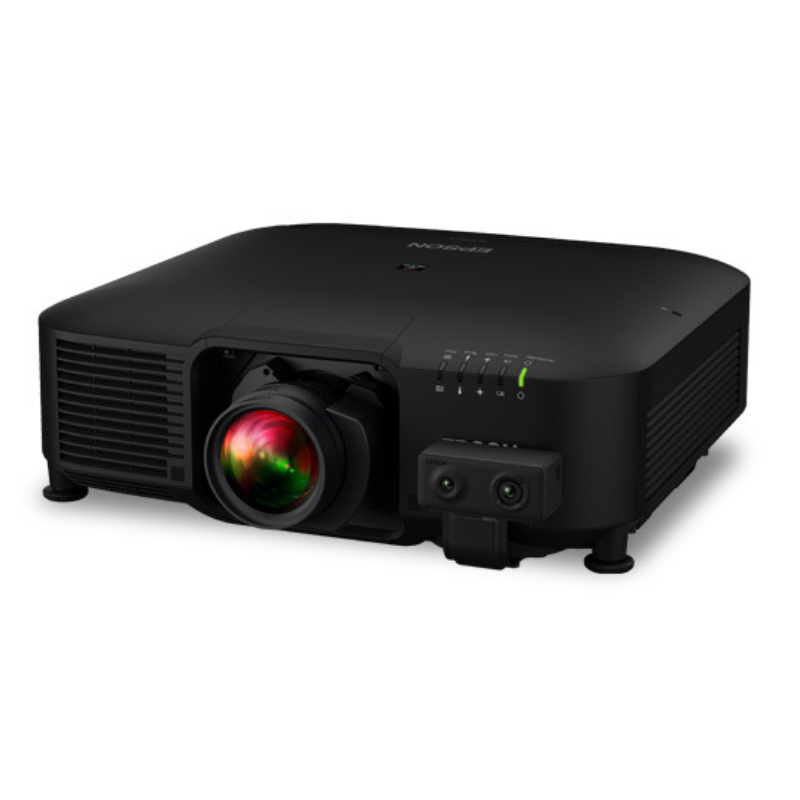

• Optional attachable PixAlign external camera — access powerful automated tools including edge blending assist⁶, stacking assist function⁶, auto color calibration⁷ and screen matching⁷ with or without a connected PC and router
• Efficient setup and management — control multiple projectors in a single, large space with Epson Projector Professional Tool (EPPT app)⁸; easily manage your installed inventory using Epson Projector Management – Connected (EPM-C)⁹ from any device with a Web browser
• NFC function built-in⁴ — reduce installation time of multiple projectors; read and write setting information using Epson’s mobile app

Specifications

Projection Details

• Technology: High-aperture Epson 3-chip 3LCD

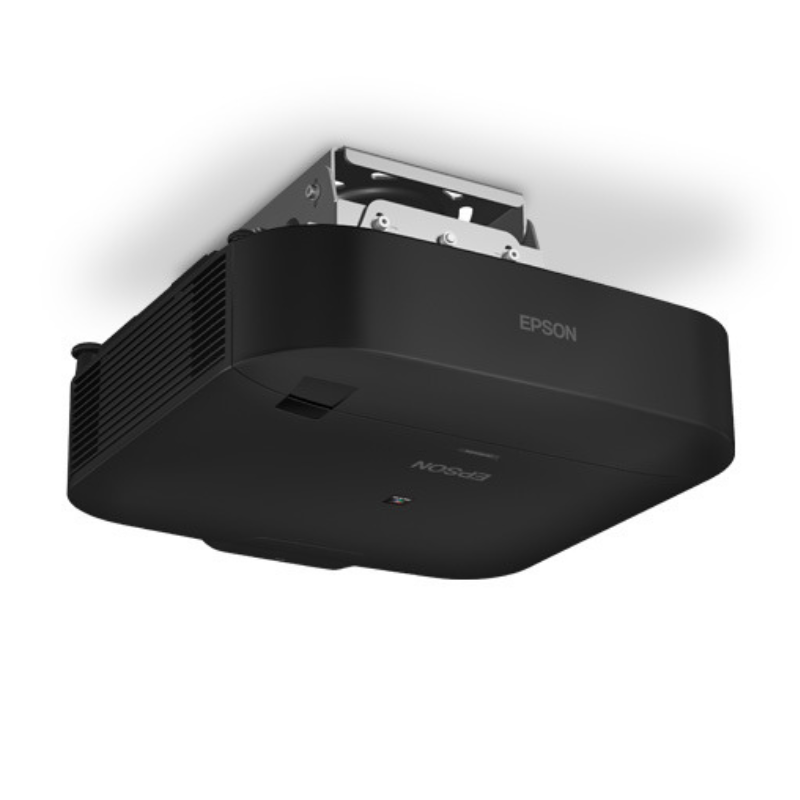

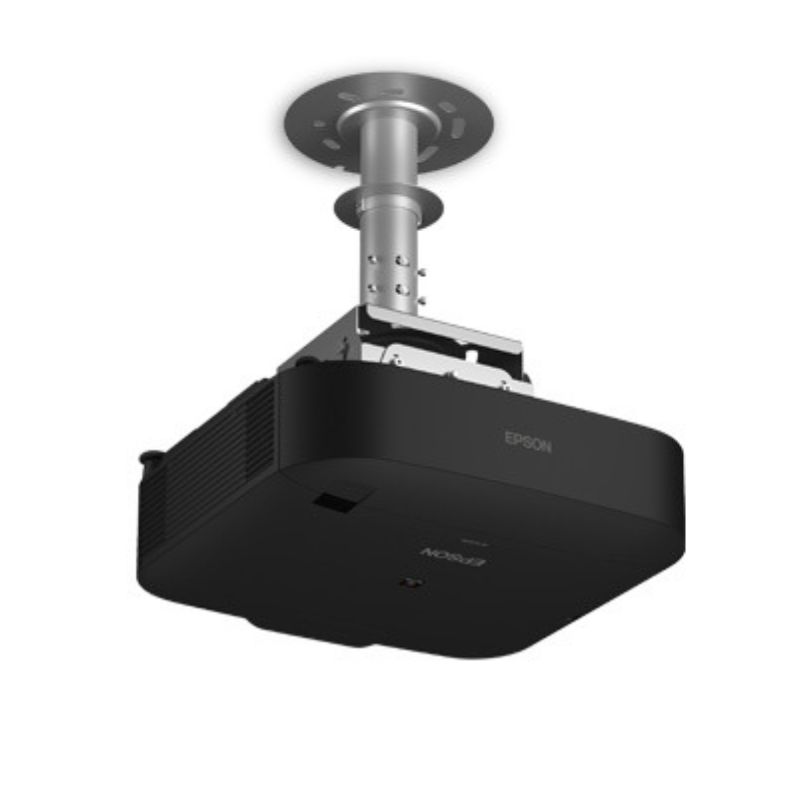

• Projection Method: Front, rear, or ceiling mount
• Driving Method: Poly-Silicon TFT Active Matrix
• Pixel Count: 2,073,600 pixels (1920 x 1080) x 3 chips

Resolution & Input

• Maximum Display Resolution: 4096 x 2160 pixels (resized display)
• Native Resolution: 1080p with 4K Crystal Motion (1920 x 1080 x 4)
• On-Screen Resolution: 4K UHD (3840 x 2160)
• Aspect Ratio Support:
  • 4:3, 16:10, 16:9*, 21:9*
  • *Includes vertical image shift within the letterbox area.
• Pixel Arrangement: Cross stripe

Brightness & Contrast

• Color Brightness: 10,000 lumens
• White Brightness: 10,000 lumens
• Contrast Ratio: Up to 5,000,000:1 (Dynamic Contrast: On)
• Brightness Uniformity (Typical): 85%

Color & Keystone Correction

• Color Reproduction: Supports up to 1.07 billion colors
• Keystone Correction:
  • Vertical: ±45°
  • Horizontal: ±30°

Illumination Technology

• Type: Laser Phosphor
• Light Source Life:
  • Normal Mode: 20,000 hours
  • Extended Mode: 30,000 hours
