EB-810E's super-ultra-short-throw lens allows discreet positioning close to the wall, enabling presenters free access without casting shadows.
With 5,000 lumens CLO and 3LCD technology, the EB-810E is bright and vibrant up-to 160", which enables content visibility from all angles and distances. The experience is immersive and it's extremely simple to use.
Versatile wired and wireless connectivity options, including Miracast™ screen mirroring, ensure effortless, multi-device content sharing.
Weighing only 12.3kg, it is highly portable, and the Epson Setting Assistant App makes setup quick and simple. The ideal display solution suitable for different room sizes, combined with flexible installation options.
The EB-810E supports multiple aspect ratios and multi-projector edge-blending for a low cost, seamless, energy efficient ultra-wide display, perfect for video conferencing.
Paired with Epson's Ambient Light Rejection Screen, the EB-810E's image quality could be mistaken for a video wall or LED display, but it is surprisingly affordable and consumes a fraction of the energy.
Specifications
Technology:
- Projection System: 3LCD Technology, RGB Liquid Crystal Shutter
- LCD Panel: 0.62 inch with C2 Fine
Image:
- Color Light Output: 5,000 Lumen (3,500 Lumen in Economy Mode) [IDMS15.4]
- White Light Output: 5,000 Lumen (3,500 Lumen in Economy Mode) [ISO 21118:2020]
- Resolution: 1080p
- Resolution Enhancement: 4K Enhancement
- Aspect Ratio: 16:9
- Contrast Ratio: Over 5,000,000:1
-
Light Source: Laser
- Durability: 20,000 hours (High Mode), 30,000 hours (Eco Mode)
- Color Video Processing: 10 Bits
- 2D Vertical Refresh Rate: 192 Hz - 240 Hz
- HDR Support: HDR10, HLG
Optical:
- Throw Ratio: 0.16 - 0.40:1
- Zoom: Digital, Factor: 1 - 1.35
- Lens Type: Optical
- Screen Size: 80 inches - 160 inches
- Projection Lens F Number: 1.8
- Projection Lens Focal Length: 2.3 mm
- Projection Lens Focus: Manual
- Offset: 7:1

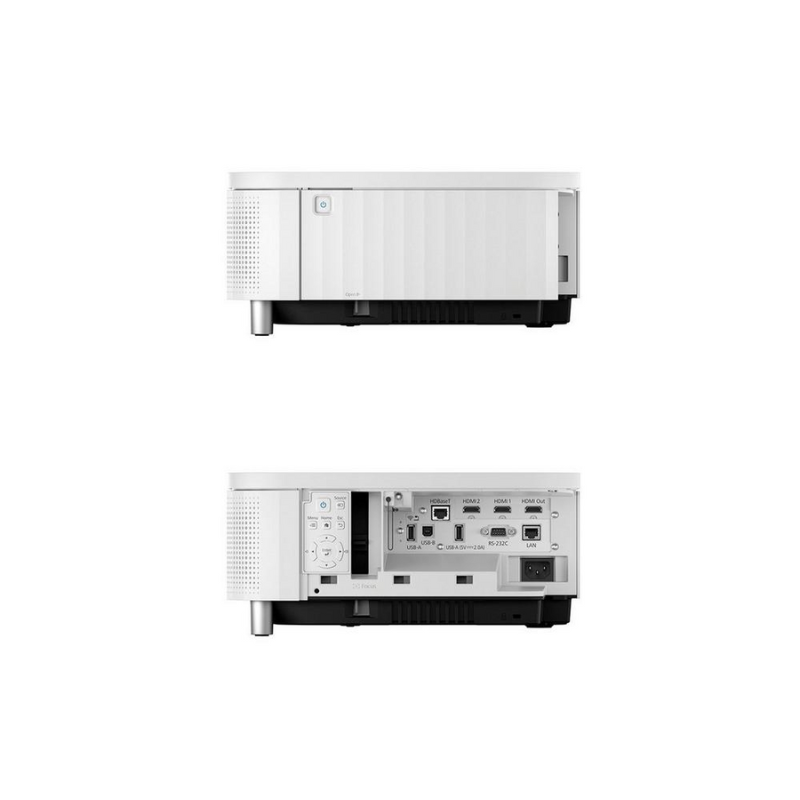

Connectivity:
-
Interfaces:
- USB 2.0-A (2x)
- USB 2.0 Type B (Service Only)
- RS-232C
- Ethernet Interface (100 Base-TX / 10 Base-T)
- Wireless LAN IEEE 802.11a/b/g/n/ac
- HDMI In (2x)
- HDMI Out
- HDBaseT
- Miracast
- Epson iProjection App: Ad-Hoc / Infrastructure
- Network Protocol: HTTPS, IPv4, IPv6, SNMP, ESC/VP.net, PJLink
Advanced Features:
-
Security:
- Kensington Lock
- Control Panel Lock
- Password Lock
- Padlock
- Wireless LAN Unit Lock
- Wireless LAN Security
- 3D: No
- 2D Color Modes: Dynamic, Natural, Cinema, Presentation, Blackboard, DICOM SIM
-
Other Features:
- 21:9 Aspect Ratio Support
- 4K Enhancement
- A/V Mute
- Arc Correction
- Auto Power On
- Auto Source Search
- Built-in Speaker
- CEC Compatible
- Customizable User Logo
- Daisy Chain Multi-Projection
- Digital Zoom
- Direct Power On/Off
- Document Camera Compatible
- Edge Blending
- Email Notification
- Fit to Screen
- Home Screen
- Horizontal and Vertical Keystone Correction
- Image Shift
- JPEG Viewer
- Long Light Source Life
- PC Free
- Point Correction
- Power On Button
- Quick Corner
- Schedule Function
- Screen Mirroring
- Source Function
- Split-Screen Function
- Ultra-Wide Display (16:6)
- Web Control
- Web Remote
- Wireless LAN Capable
- iProjection App
- Interactivity: No
- Video Color Modes: Blackboard, Cinema, Dynamic, Natural, Presentation, DICOM SIM, Multi Projection
Projector Control:
- Via: AMX, Extron, Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol
General:
-
Power Consumption:
- 290 Watt (Normal On-Mode)
- 192 Watt (Eco On-Mode)
- 380 Watt (Normal Peak-Mode)
- 286 Watt (Eco Peak-Mode)
- 0.4 Watt (Energy-Saving Standby)
- Heat Dissipation: 1,292 BTU/hour (max)
- Supply Voltage: AC 100 V - 240 V, 50 Hz - 60 Hz
- Product Dimensions: 695 x 341 x 156 mm (Width x Depth x Height)
- Product Weight: 12.5 kg
-
Noise Level:
- 35 dB (Normal)
- 26 dB (Economy)
-
Supported Temperature:
- Storage: -10°C to 60°C
-
Supported Humidity:
- Operation: 20% - 80%
- Storage: 10% - 90%
- Environmental Caution: In environments with heavy oil smoke, chemicals, or frequent aroma oil burning, certain parts of the projector may degrade over time, potentially causing the projector to drop if mounted on a ceiling or wall. Contact support if concerned about the installation environment.
Included Software:
- Epson Creative Projection
- EasyMP Multi PC Projection
- Epson Projector Content Manager
- Epson Projector Management
- Epson Setting Assistant
Options:
- Air Filter
- Ceiling Mount
- Connection and Control Box
- MB22 Ceiling Mount
- Safety Wire Set
- Visualiser Camera
- WP System - ELPWP10
- WP System - ELPWP20
- Wall Mount
- Wireless LAN Unit
- Wireless Transmitter - ELPWT01
Room Type / Application:
- 4K Streaming
- Boardroom
- Huddle Space / Portable
- Large Meeting Room / Auditorium
- Meeting Room / Classroom
- Signage / Retail
- Visitor Attraction
Positioning:
- Ceiling Mounted
- Desktop
- TV Cabinet
- Wall Mounted
Color:
- White
Warranty:
- 60 months Carry-in or 12,000 hours
