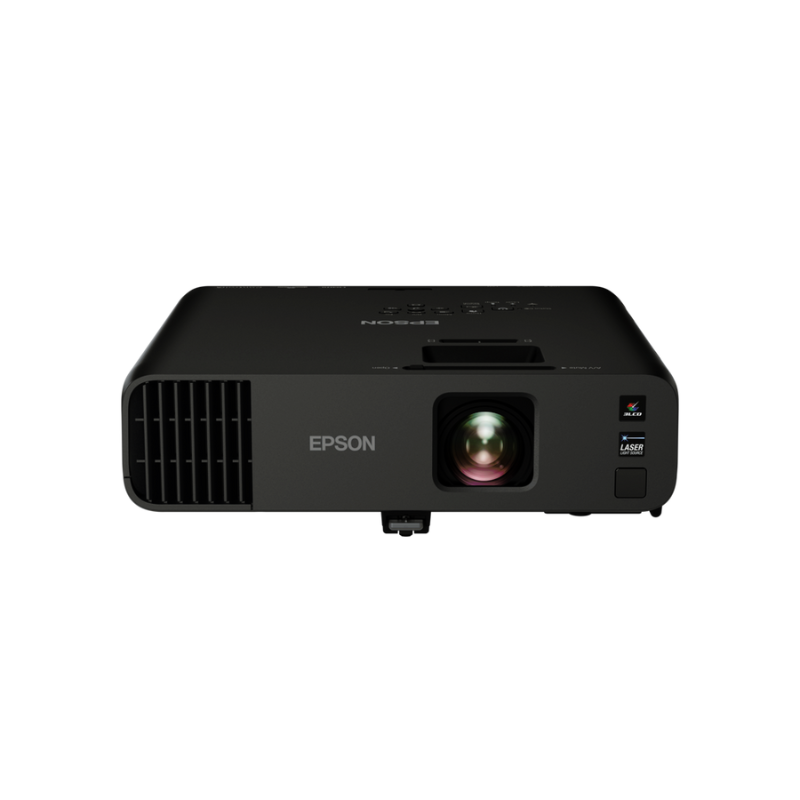

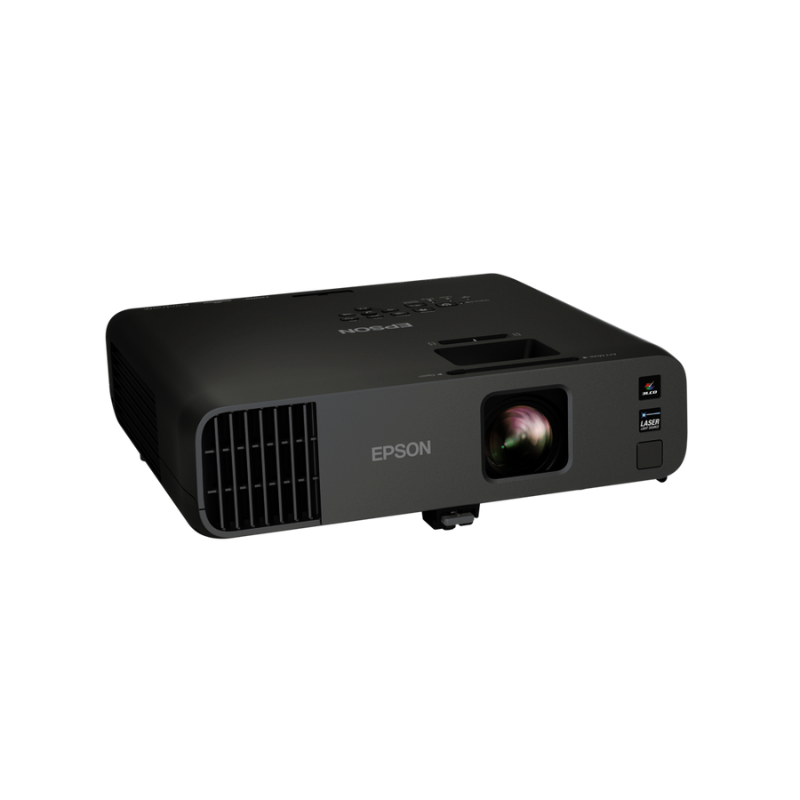

Epson EB-L265F - 1080P Laser Projector, 4600 lumens (Each)

Innovative and cost effective

Epson's advanced laser technology is bright, robust and reliable for a flexible and easy to use digital signage solution. It offers bright and vivid colours in a cost-effective solution capable of creating large displays or even projecting onto 3D objects.

Flexible display options

The EB-L265F enables scalable display sizes of up to 310 inches with a single projector - even larger when edge-blending 2 units. Full HD, 4,600 lumen brightness and 3LCD technology offer bright colours and high quality - perfect for creating engaging and informative displays, even in bright spaces.

It can be mounted wherever needed - wall, floor or ceiling (inc.on a lighting track) with optional accessories. A white model is also available (EB-L260F) to ensure the projector is as discrete as possible.

Create dynamic content

Epson offers free apps for content creation (Epson Creative Projection & Epson Projector Content Management). Content can be played directly from USB (including playlists, videos, and signage content) using the built-in playback feature. Users can even upload and playback content wirelessly with built-in Wi-Fi and Miracast functionality.

Low maintenance and high reliability

Up to 20,000 hours maintenance-free use using a laser light source with a 5 year warranty make this a cost-effective fit-and-forget display solution you can rely on.

Specifications

Technology:

• Projection System: 3LCD Technology, RGB liquid crystal shutter
• LCD Panel: 0.62 inch with C2 Fine

Image:

• Color Light Output: 4,600 Lumen (3,200 Lumen in Economy Mode) - In accordance with IDMS15.4
• White Light Output: 4,600 Lumen (3,200 Lumen in Economy Mode) - In accordance with ISO 21118:2020
• Resolution: 1080p (Full HD)
• Aspect Ratio: 16:9
• On-Screen Pixel Count: 2,073,600
• Contrast Ratio: 5,000,000:1
• Light Source: Laser
  • Durability: 20,000 hours (High Mode), 30,000 hours (Eco Mode)
• Keystone Correction:
  • Auto Vertical: ±30°
  • Manual Horizontal: ±30°
• Color Video Processing: 10 Bits
• 2D Vertical Refresh Rate: 192 Hz - 240 Hz
• Color Reproduction: Up to 1.07 billion colors

Optical:

• Throw Ratio: 1.32 - 2.12:1
• Zoom: Manual, 1.62x
• Lens Type: Optical
• Screen Size: 31 inches - 310 inches
• Projection Lens:
  • F-Number: 1.51 - 1.77
  • Focal Length: 18.2 mm - 29.1 mm
  • Focus: Manual
• Offset: 10:1

Connectivity:

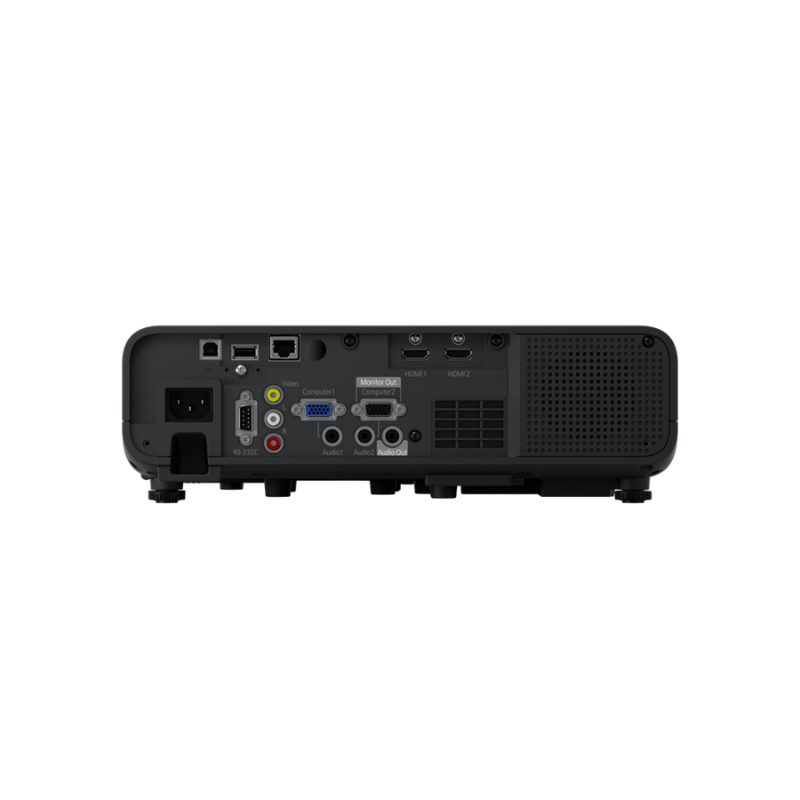

• Interfaces:
  • USB 2.0-A
  • USB 2.0 Type B (Service Only)
  • RS-232C
  • Ethernet Interface (100 Base-TX / 10 Base-T)
  • Wireless LAN IEEE 802.11a/b/g/n/ac
  • VGA In (2x)
  • VGA Out
  • Composite In
  • Miracast
  • Jack Plug Out
  • Jack Plug In (2x)
  • HDMI (HDCP 2.3) (2x)
• Epson iProjection App: Ad-Hoc / Infrastructure
• Network Protocol: HTTPS, IPv6, SNMP, ESC/VP.net, PJLink

Advanced Features:

• Security:
  • Kensington lock
  • Security bar
  • Control panel lock
  • Padlock
  • Security cable hole
  • Wireless LAN unit lock
  • Wireless LAN security
  • Password protection
• Other Features:
  • A/V mute
  • Arc Correction
  • Auto Power On
  • Auto Source Search
  • Automatic Keystone Correction
  • Built-in Speaker
  • CEC Compatible
  • Customizable User Logo
  • Direct Power On/Off
  • Document Camera Compatible
  • Edge Blending
  • Home Screen
  • Horizontal and Vertical Keystone Correction
  • Long Light Source Life
  • OSD Copy Function
  • PC Free
  • Quick Corner
  • Schedule Function
  • Screen Mirroring
  • Split-Screen Function
  • Super Resolution
  • Web Control
  • Web Remote
  • Wireless LAN Capable
  • iProjection App
• Video Color Modes: Blackboard, Cinema, Dynamic, Presentation, sRGB, Multi Projection

Projector Control:

• Via: Crestron Integrated Partner, Crestron RoomView, Extron IP Link, AMX Device Discovery, Control4 Simple Device Discovery Protocol

General:

• Power Consumption:
  • 199 Watt (Normal On-Mode)
  • 144 Watt (Eco On-Mode)
  • 260 Watt (Normal Peak-Mode)
  • 191 Watt (Eco Peak-Mode)
  • 0.5 Watt (Energy-saving standby)
• Heat Dissipation: 884 BTU/hour (max)
• Supply Voltage: AC 220 V - 240 V, 50 Hz - 60 Hz
• Product Weight: 4.2 kg
• Noise Level:
  • 37 dB (Normal)
  • 27 dB (Economy)
• Supported Temperature:
  • Storage: -10°C to 60°C
• Supported Humidity:
  • Operation: 20% - 80%
  • Storage: 10% - 90%
• Special Installation Considerations:
  • If installed in environments with heavy oil smoke, volatile oils or chemicals, or areas with smoke or bubbles, material degradation could occur, potentially leading to the projector dropping from the ceiling. Contact support for concerns.

Included Software:

• Epson Creative Projection
• EasyMP Multi PC Projection
• Epson Projector Content Manager
• Epson Projector Management

Options:

• Air Filter
• Ceiling Mount
• Connection and Control Box
• Document Camera
• External Speaker
• Safety Wire Set
• WP System - ELPWP10
• Wall Mount
• Wireless LAN Unit
• Wireless Transmitter - ELPWT01

Loudspeaker:

• Output: 16 Watt

Room Type / Application:

• Projection Mapping
• Signage / Retail
• Visitor Attraction

Positioning:

• Ceiling Mounted
• Desktop
• Floor
• Lighting Track
• Wall Mounted

Color:

• Black

Warranty:

• 60 months Carry in or 12,000 hours
