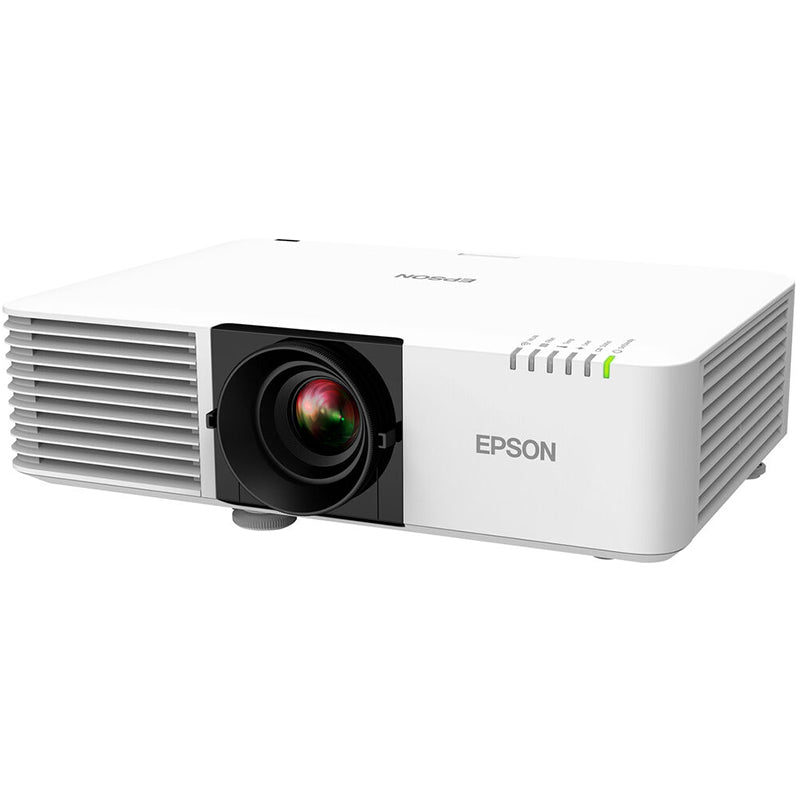

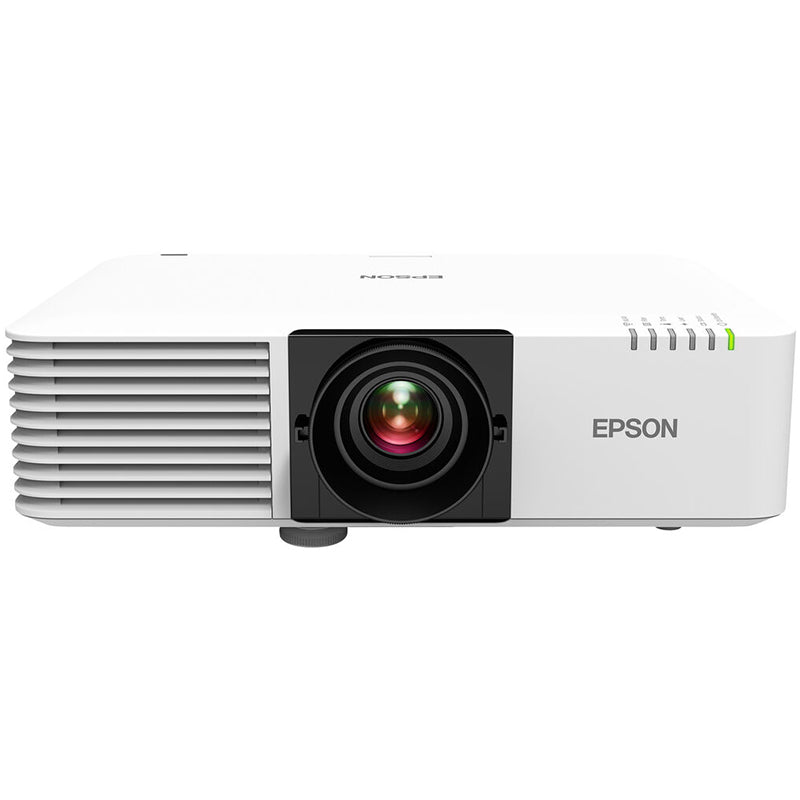

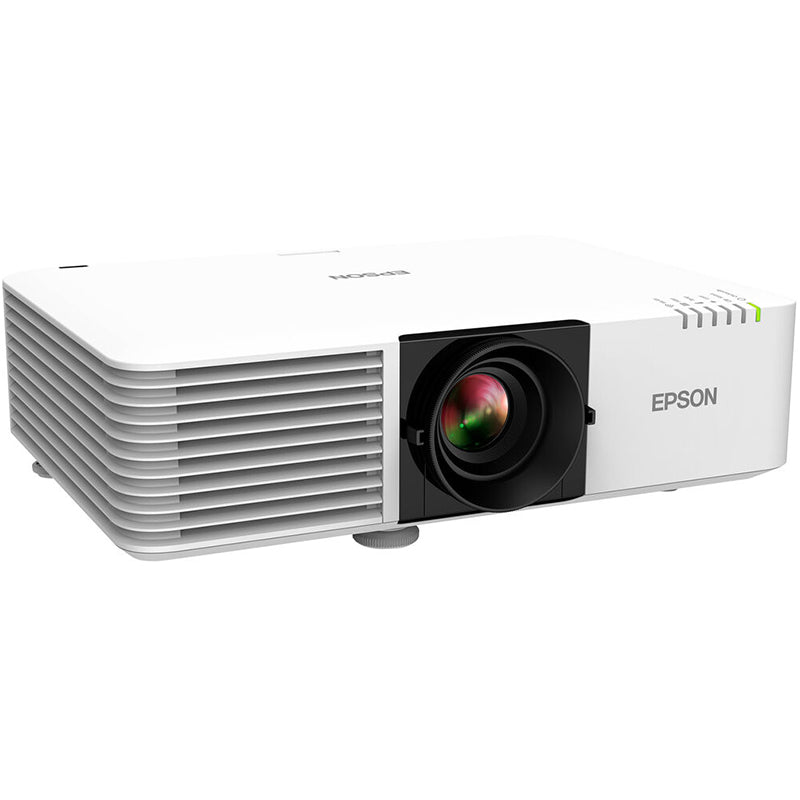

Epson EB-L520U WUXGA Laser Display Projector (Each)

Providing more premium features than you would typically expect to find in this display class, the EB-L520U delivers edge-blending and geometric correction to achieve one seamless large-format display. And for multimedia content, you can playback content without any lagging, and create playlists, and set schedules directly from USB memory, all thanks to H.264 advanced video coding and the Epson Content Manager.

Thanks to the renowned market leading² reliability of Epson laser displays, this fit and forget solution eliminates the need for regular maintenance. And for added confidence, the EB-L520U comes with a standard 3-year warranty to provide lasting peace of mind.

Specifications

Projection System:

• Technology: 3LCD Technology
• LCD Panel: 0.76 inch with C2 Fine

Image:

• Color Light Output: 5,000 Lumen
• White Light Output: 5,000 Lumen
• Resolution: WUXGA (1920 x 1200)
• Aspect Ratio: 16:10
• Contrast Ratio: 2,500,000:1
• Colour Reproduction: Up to 1.07 billion colors
• HDR Support: HDR10, HLG

Optical:

• Light Source: Laser
• Laser Light Source Life:
  • 20,000 hours (Normal Mode)
  • 30,000 hours (Eco Mode)
• Throw Ratio: 1.35 - 2.84:1
• Zoom: Motorized, Factor: 1 - 2.1
• Lens Shift: Motorized - Vertical ± 96.3 %, Horizontal ± 47.1 %
• Lens Position Memory: 10 positions
• Screen Size: 50 inches - 300 inches
• Projection Distance Wide/Tele: 3 m - 6.4 m (for a 100-inch screen)
• Projection Lens F Number: 2.0 - 2.9
• Projection Lens Focal Length: 22.5 mm - 46.7 mm
• Projection Lens Focus: Motorized

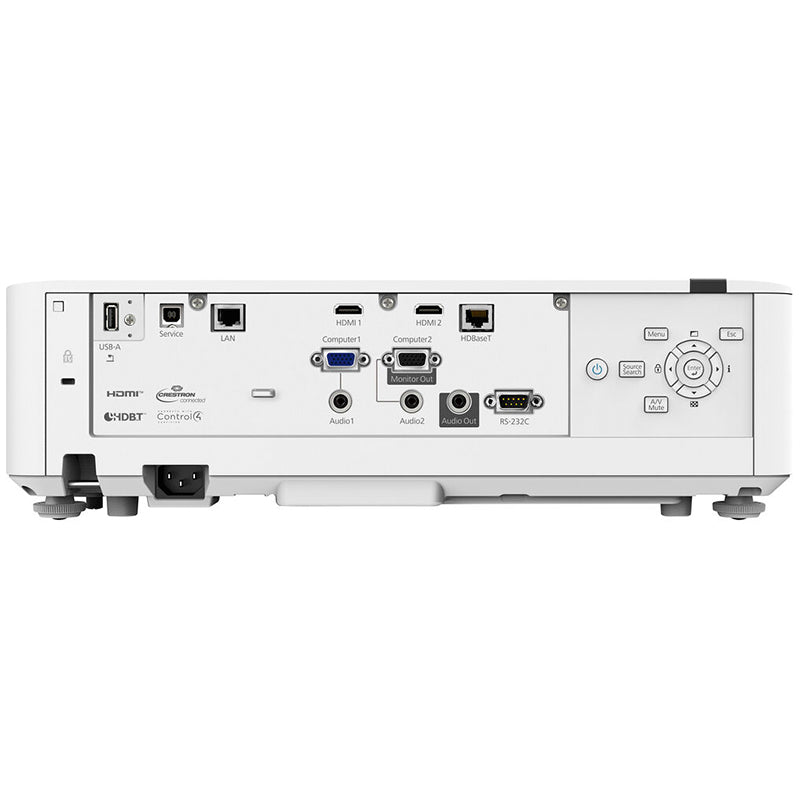

Connectivity:

• Interfaces:
  • USB 2.0-A (2x)
  • USB 2.0 Mini-B
  • RS-232C
  • Ethernet Interface (100 Base-TX / 10 Base-T)
  • HDMI (HDCP 2.3) (2x)
  • Trigger out
• Network Protocol: HTTPS, IPv6, SNMP, ESC/VP.net, PJLink

Advanced Features:

• Security: Kensington lock
• Other Features:
  • 4K enhancement
  • A/V mute
  • Digital zoom
  • Frame interpolation
  • Horizontal and vertical keystone correction
  • Instant on/off
  • Lens position memory
  • Long light source life
  • Super resolution
  • Web Control
  • iProjection App

General:

• Power Consumption:
  • Normal Mode: 295 Watt
  • Eco Mode: 310 Watt
  • Standby Mode: 0.5 Watt
• Heat Dissipation: 1,247.8 BTU/hour (max)
• Supply Voltage: AC 100 V - 240 V, 50 Hz - 60 Hz
• Product Dimensions: 545 mm x 436 mm x 189 mm (WxDxH)
• Product Weight: 15.4 kg
• Noise Level:
  • Normal Mode: 30 dB (A)
  • Economy Mode: 28 dB (A)
• Supported Temperature:
  • Operation: 5° C - 35° C
  • Storage: -10° C - 60° C
• Supported Humidity:
  • Operation: 20% - 80%
  • Storage: 10% - 90%
• Included Software:
  • Epson Creative Projection
  • Epson Projector Config Tool
  • Epson Projector Content Manager
  • Epson Projector Management
• Options:
  • Air filter
  • Camera module
  • Ceiling mount
  • Wireless LAN unit
• Room Type / Application:
  • Boardroom
  • Large Meeting Room / Auditorium
  • Meeting room / Classroom
  • Projection Mapping
  • Rental / Staging
  • Signage / Retail
  • Visitor Attraction

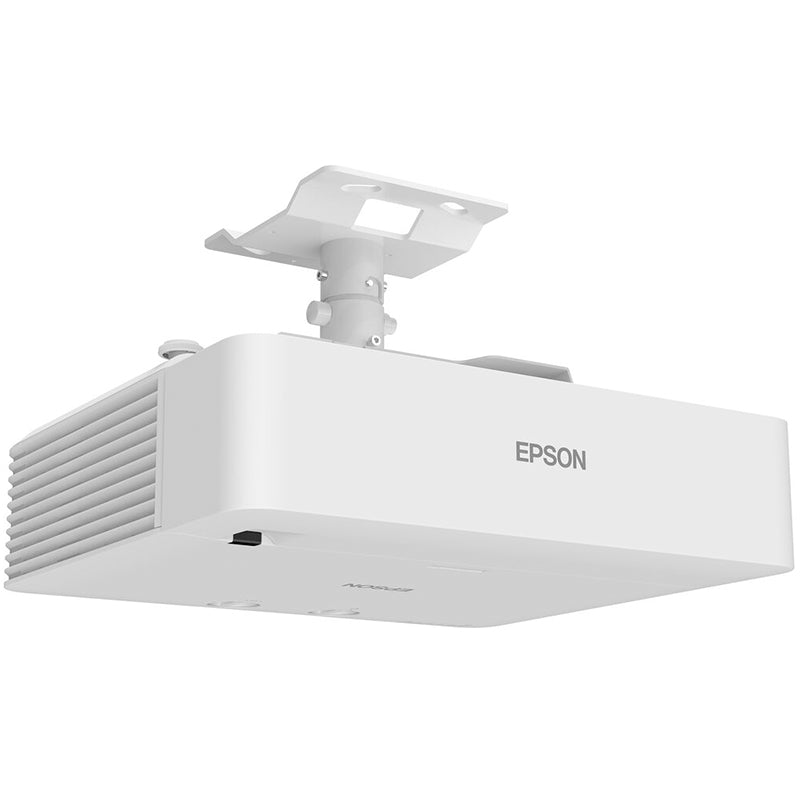

• Positioning: Ceiling Mounted, Desktop, Flying Frame
