Excel your content delivery
The perfect Full HD laser display solution allows you to upgrade to laser performance and reliability without paying a premium. High contrast of 2,500,000:1 and 3LCD technology ensures professional, outstanding and clear content delivery in any working environment while keeping audiences engaged.
Simple set-up and connectivity
Offers MTR auto power-on function by HDMI video signal detection and an array of connectivity options including Dual HDMI and built-in wireless LAN to stream content from laptops or mobile devices with Screen Mirroring (Miracast) - PIN code support and display dialog username when connected Miracast to projector allows teacher to block student interruption while teacher is projecting. USB power supply (2A) for easy smart stick connection. Compatible with iProjection software for easy connectivity with mobile devices and content sharing.
Peace of mind and long-lasting durability
Project for longer with exceptional reliability and a longer usage life of up to 30,000 hours in Eco Mode (20,000 hours normal). The EB-L260F is covered by a five-year warranty.
Fit and forget installation, ease of installation
This light weight and compact projector supports 360 degree installation without compromising the display quality and supports 16:6 ultra-widescreen, HDMI output and edge blending for multi-projector installs.
Specifications
Technology:
- Projection System: 3LCD Technology, RGB liquid crystal shutter
- LCD Panel: 0.62 inch with C2 Fine
Image:
- Color Light Output: 4,600 Lumen (3,200 Lumen in Economy Mode) - In accordance with IDMS15.4
- White Light Output: 4,600 Lumen (3,200 Lumen in Economy Mode) - In accordance with ISO 21118:2020
- Resolution: 1080p (Full HD)
- Resolution Enhancement: Full HD
- Aspect Ratio: 16:9
- On-Screen Pixel Count: 2,073,600
- Contrast Ratio: 5,000,000:1
-
Light Source: Laser
- Durability: 20,000 hours (High Mode), 30,000 hours (Eco Mode)
-
Keystone Correction:
- Auto Vertical: ±30°
- Manual Horizontal: ±30°
- Color Video Processing: 10 Bits
- 2D Vertical Refresh Rate: 192 Hz - 240 Hz
- Color Reproduction: Up to 1.07 billion colors
Optical:
- Throw Ratio: 1.32 - 2.12:1
- Zoom: Manual, Factor 1 - 1.62
- Projection Lens Zoom Ratio: 1.32 - 2.12:1
- Lens Type: Optical
- Screen Size: 31 inches - 310 inches
- Projection Distance Wide: 0.9 m - 9.1 m
-
Projection Lens:
- F-Number: 1.51 - 1.77
- Focal Length: 18.2 mm - 29.1 mm
- Focus: Manual
- Offset: 10:1
Connectivity:
-

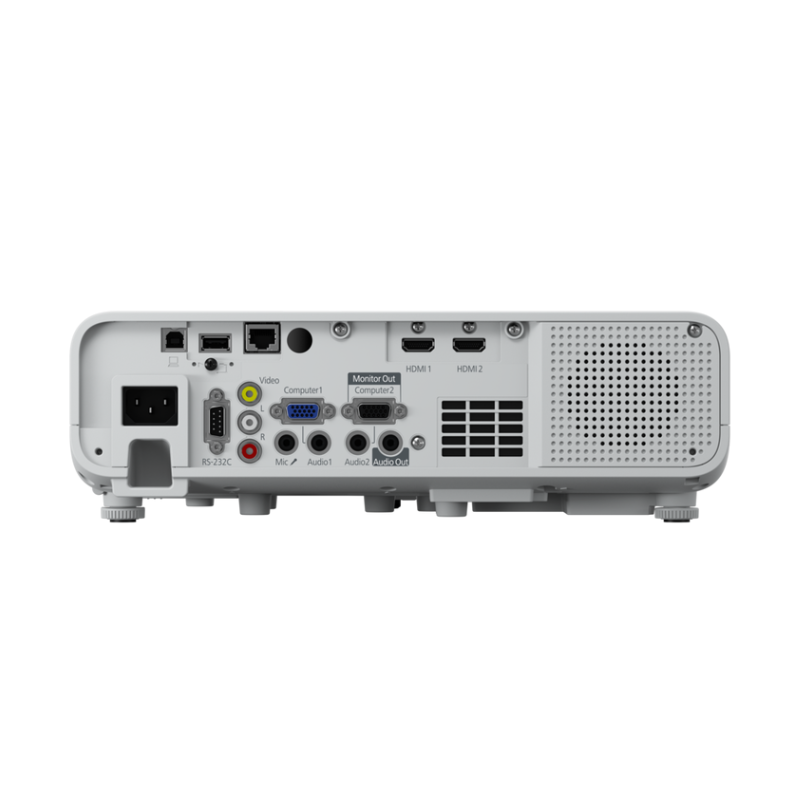

Interfaces:
- USB 2.0-A
- USB 2.0
- RS-232C
- Ethernet Interface (100 Base-TX / 10 Base-T)
- Wi-Fi Direct
- VGA In (2x)
- VGA Out
- Composite In
- Miracast
- Jack Plug Out
- Jack Plug In (2x)
- Cinch Audio Out
- Microphone Input
- HDMI (HDCP 2.2) (2x)
- Wireless LAN IEEE 802.11a/b/g/n/ac
- Epson iProjection App: Ad-Hoc / Infrastructure
- Network Protocol: HTTPS, IPv6, SNMP, ESC/VP.net, PJLink
Advanced Features:
-
Security:
- Kensington Lock
- Security Bar
- Control Panel Lock
- Padlock
- Security Cable Hole
- Wireless LAN Unit Lock
- Wireless LAN Security
- Password Protection
- 2D Color Modes: Dynamic, Cinema, Presentation, sRGB, Game
-
Other Features:
- AV Mute Slide
- Arc Correction
- Auto Power On
- Auto Source Search
- Built-in Speaker
- CEC Compatible
- Customizable User Logo
- Direct Power On/Off
- Document Camera Compatible
- Edge Blending
- Home Screen
- Horizontal and Vertical Keystone Correction
- Long Light Source Life
- OSD Copy Function
- PC Free
- Quick Corner
- Schedule Function
- Screen Mirroring
- Screen Share
- Split-Screen Function
- Super Resolution
- Web Control
- Wireless LAN Capable
- iProjection App
- Video Color Modes: Blackboard, Cinema, Dynamic, Presentation, sRGB, DICOM SIM, Multi Projection
Projector Control:
- Via: Crestron Integrated Partner, Extron IP Link, AMX Device Discovery, Control4 Simple Device Discovery Protocol
General:
-
Power Consumption:
- 199 Watt (Normal On-Mode)
- 144 Watt (Eco On-Mode)
- 260 Watt (Normal Peak-Mode)
- 191 Watt (Eco Peak-Mode)
- 0.5 Watt (Energy-saving standby)
- Heat Dissipation: 884 BTU/hour (max)
- Supply Voltage: AC 220 V - 240 V, 50 Hz - 60 Hz
- Product Dimensions: 325 x 299 x 90 mm (Width x Depth x Height)
- Product Weight: 4.2 kg
-
Noise Level:
- 37 dB (Normal)
- 27 dB (Economy)
-
Supported Temperature:
- Storage: -10°C to 60°C
-
Supported Humidity:
- Operation: 20% - 80%
- Storage: 10% - 90%
Included Software:
- Epson Creative Projection
- EasyMP Multi PC Projection
- Epson Projector Content Manager
- Epson Projector Management
Options:
- Air Filter
- Ceiling Mount
- Connection and Control Box
- Document Camera
- External Speaker
- Safety Wire Set
- Suspension Adapter
- WP System - ELPWP10
- Wall Mount
- Wireless Transmitter - ELPWT01
Loudspeaker:
- Output: 16 Watt
Room Type / Application:
- Boardroom
- Home Office
- Large Meeting Room / Auditorium
- Meeting Room / Classroom
- Projection Mapping
- Signage / Retail
- Visitor Attraction
Positioning:
- Ceiling Mounted
- Desktop
- Floor
- Wall Mounted
Color:
- White
Warranty:
- 60 months Carry in or 12,000 hours
