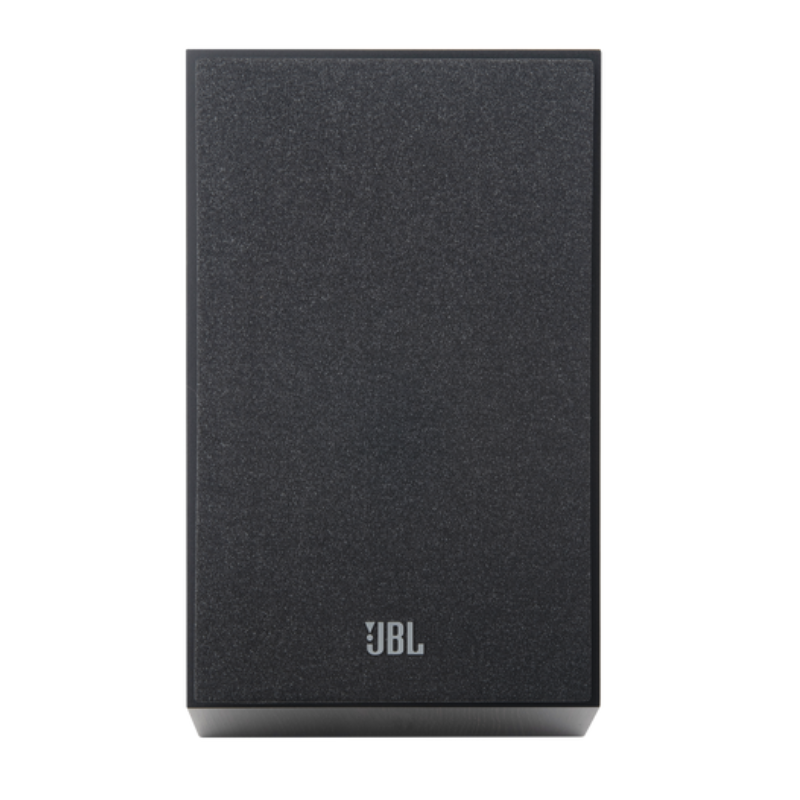

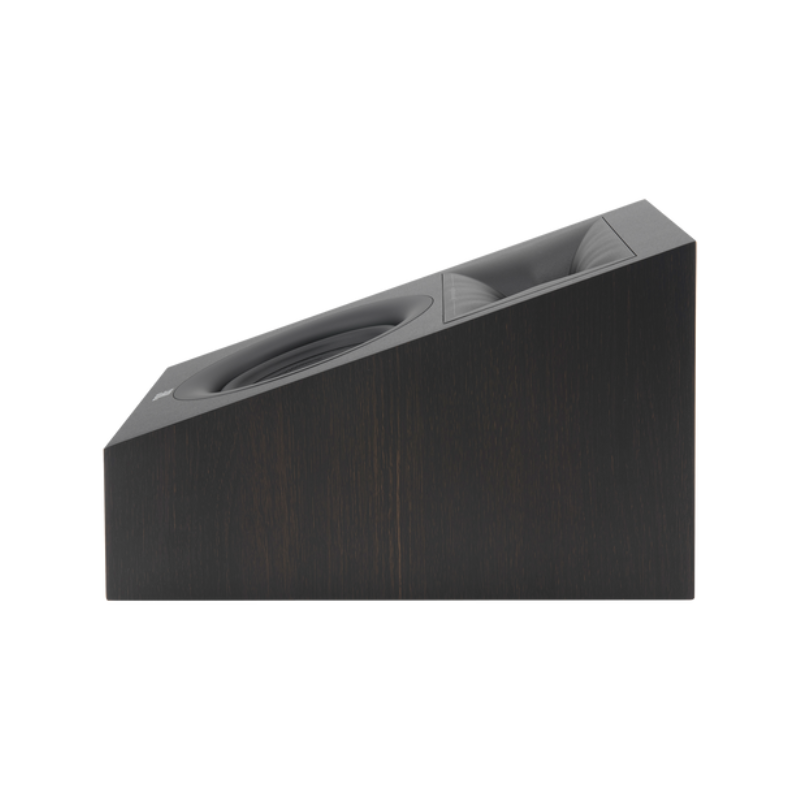

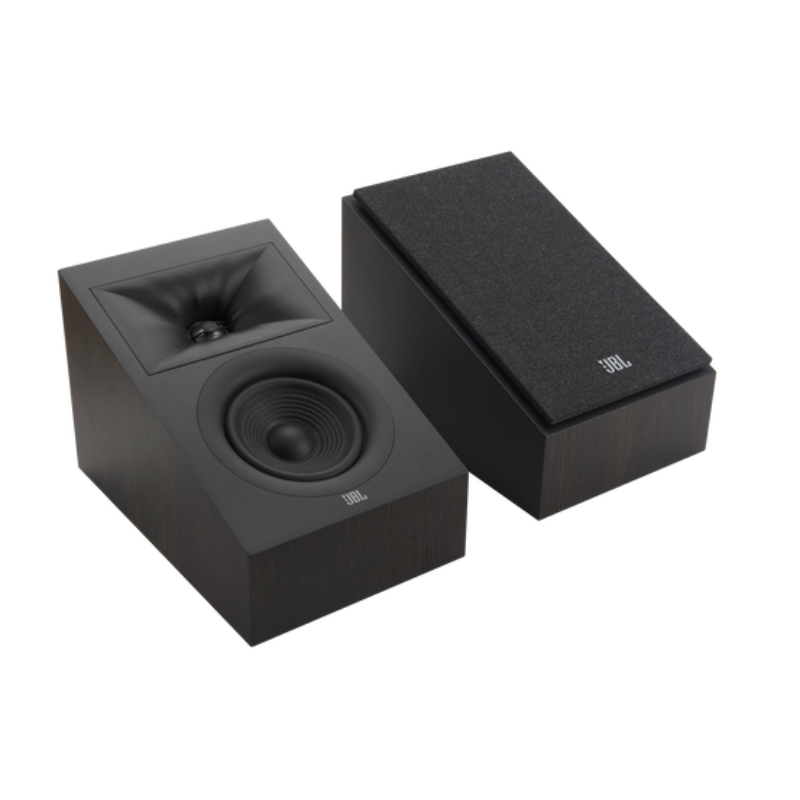

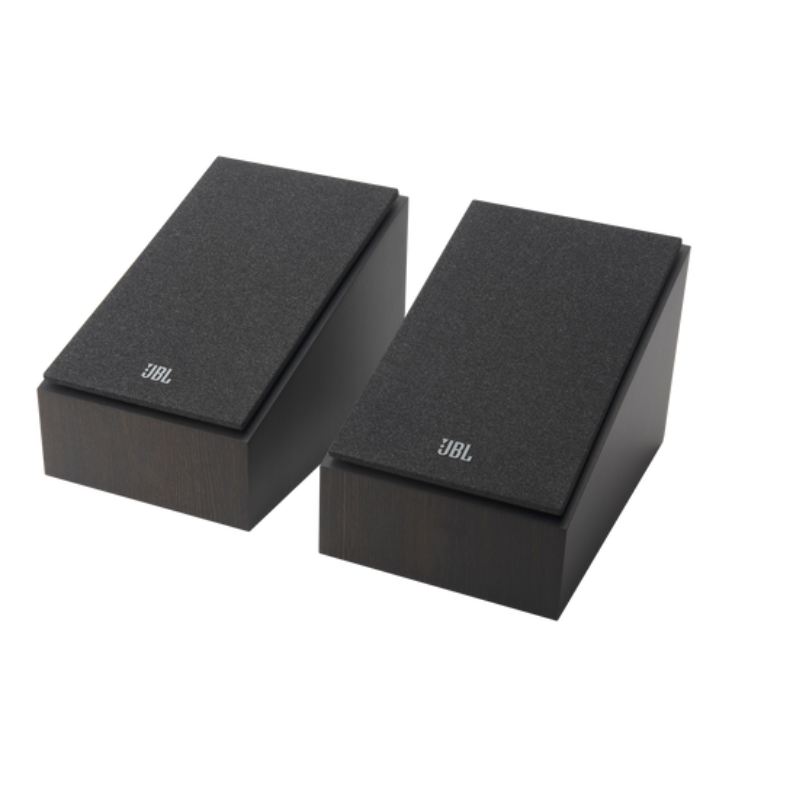

JBL Stage 2 - 240 H Atmos Speaker (Pair)

 2-Way 4.5-inch (114mm) Dolby Atmos® Surround Sound Loudspeaker - Pair

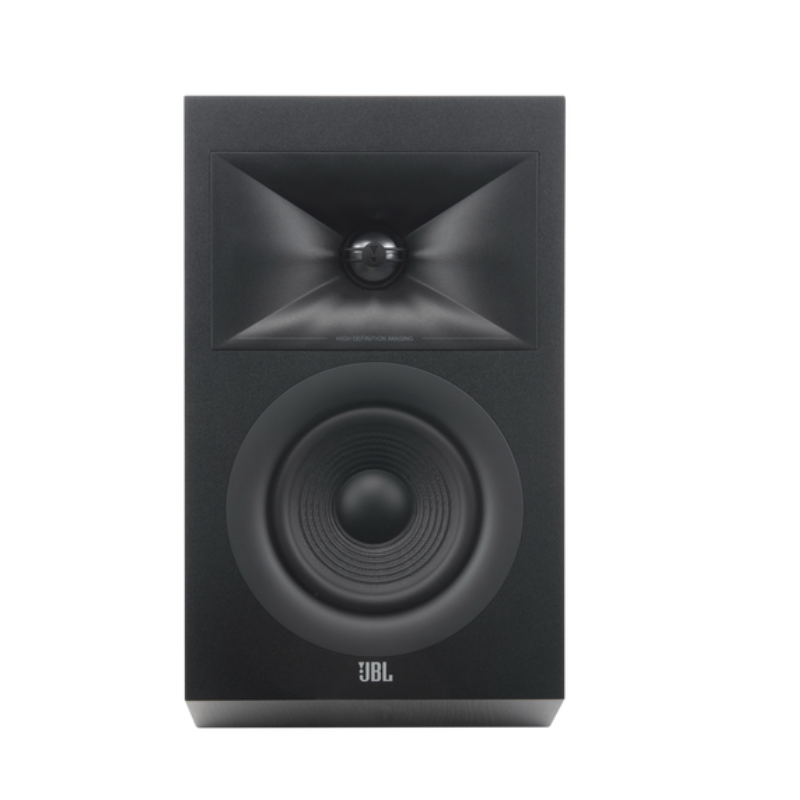

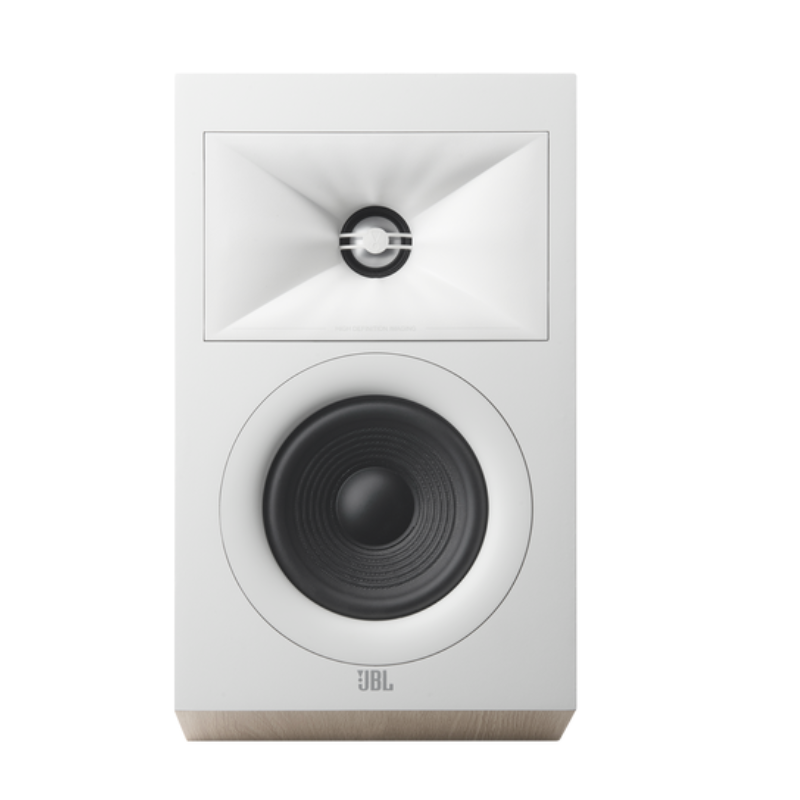

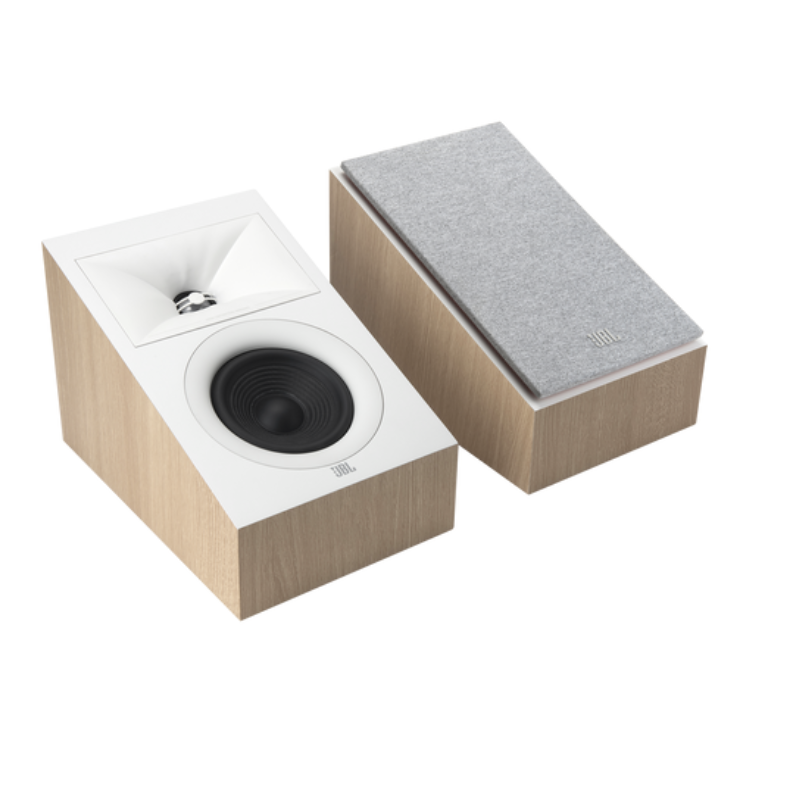

Designed and engineered at our world-famous Acoustic Engineering Center of Excellence in Northridge, California, the 240H compact multi-purpose speaker is a truly flexible Stage 2 speaker. With the flip of a switch, it can be set as a Dolby Atmos enabled add-on, or a wall mounted elevation or surround loudspeaker. The 240H features a 2-way way design with Next Generation patented High-Definition Imaging (HDI™) waveguide geometry, 1-inch (25mm) Anodized Aluminum dome tweeter, and a 4.5-inch (114mm) Polycellulose ribbed cone woofer.

4.5-inch (114mm) Polycellulose Ribbed Cone Woofer

Each speaker in the Stage 2 series features Polycellulose ribbed cone woofers. This pure pulp cone has a proprietary mix of other materials added to improve its rigidity and the ribs echo legendary JBL designs. These woofers produce deep, accurate, room filling bass.

1-inch (25mm) Anodized Aluminum Tweeter in a Next Generation HDI™ Waveguide

Through intense research of previous waveguide designs, JBL has developed a new complex geometry that improves directivity, reduced diffraction, and an overall neutral frequency response both on and off axis. The Stage 2 HDI Horn is coupled to an anodized aluminum dome tweeter to enhance efficiency and dynamics. This new design offers a neutral frequency response both on and off axis.

Specifications

Type: Dolby Atmos® Surround Sound Loudspeaker System

Low Frequency Driver: 4.5-inch (114mm) Polycellulose Ribbed Cone
High Frequency Driver: 1-inch (25mm) Anodized Aluminum

Waveguide: Next Generation HDI™
Recommended Amplifier Power: 20-150W

Frequency Response (±6dB): 85Hz - 25kHz
Sensitivity @ 1M, 2.83V: 87dB
Nominal Impedance: 6 Ohms
Crossover Frequencies: 1.6kHz

Enclosure Tuning: Sealed

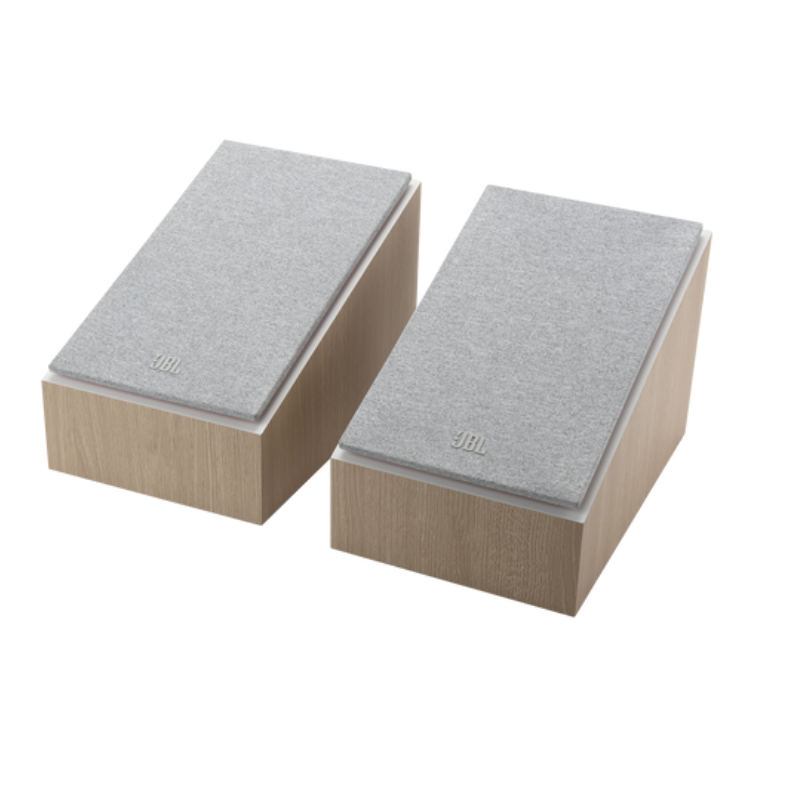

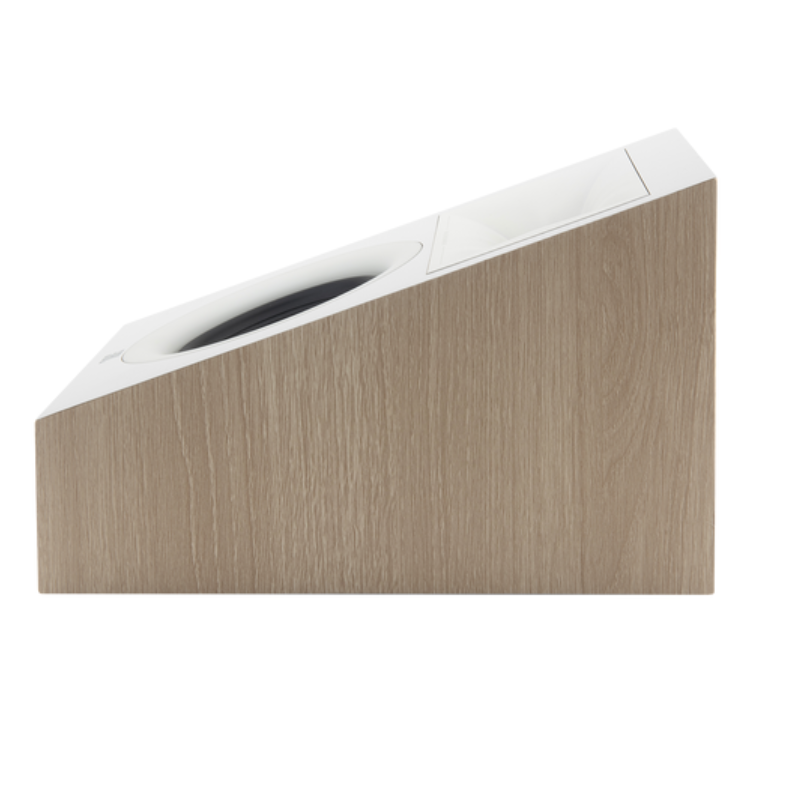

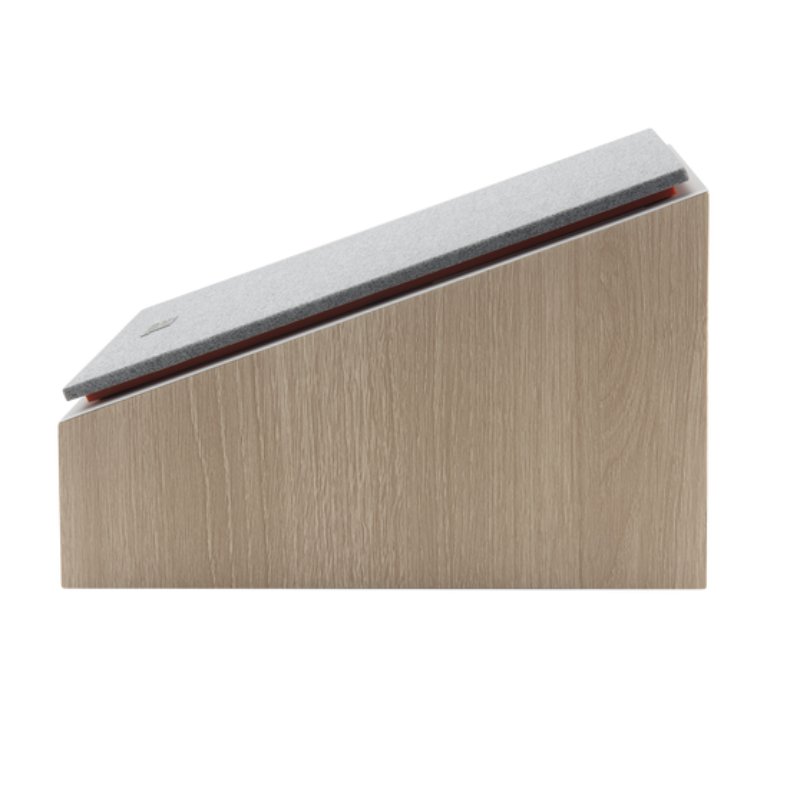

Finish: Espresso or Latte
