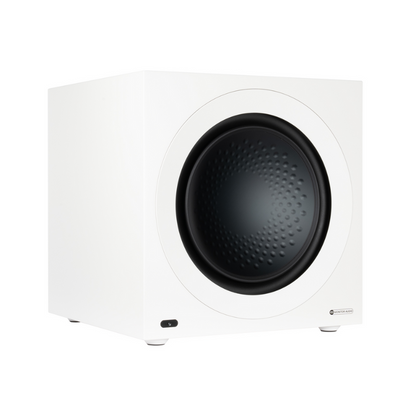

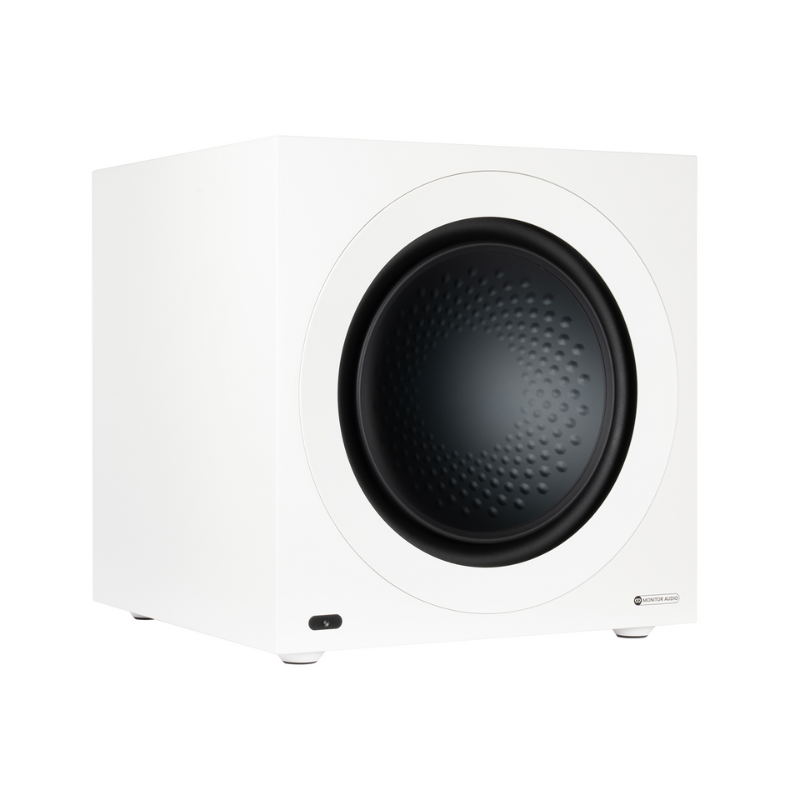

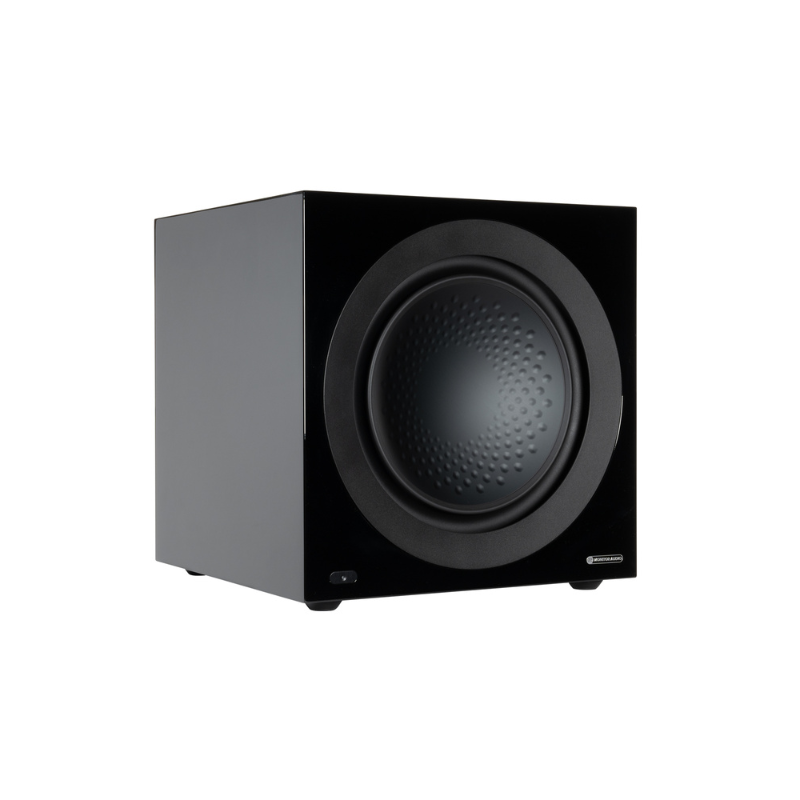

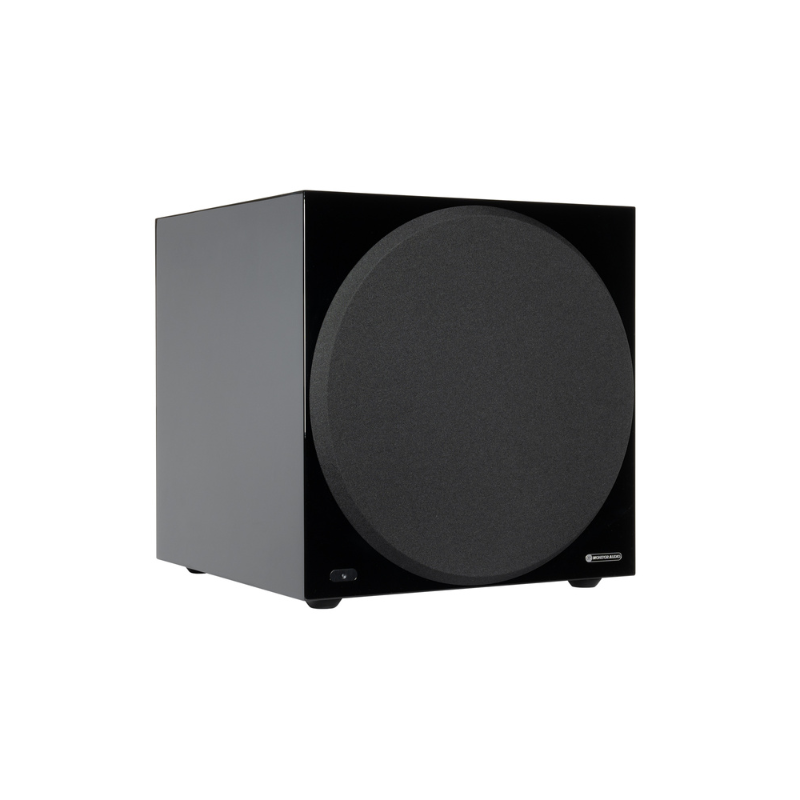

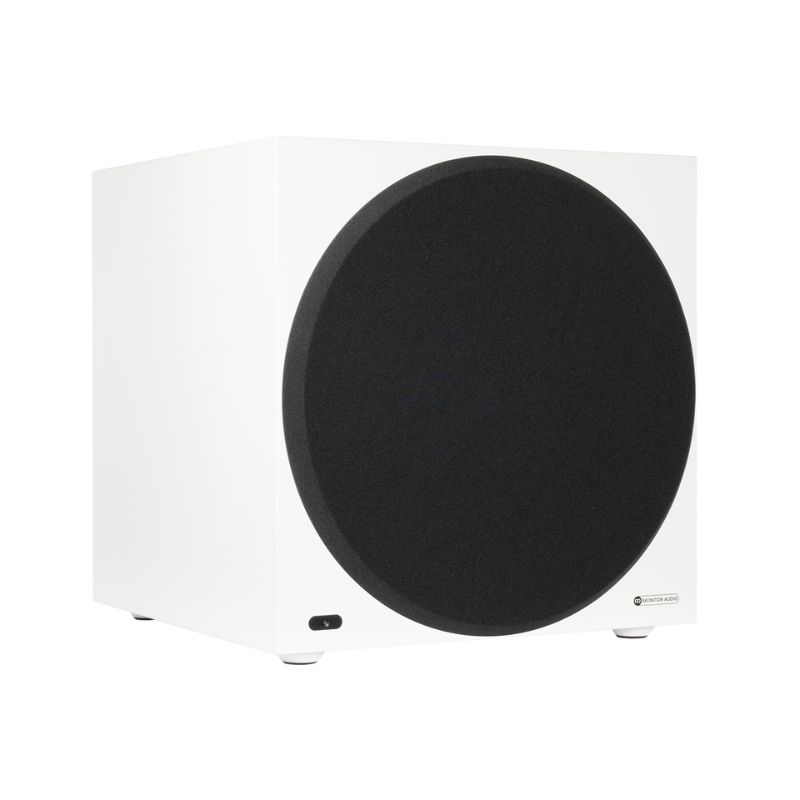

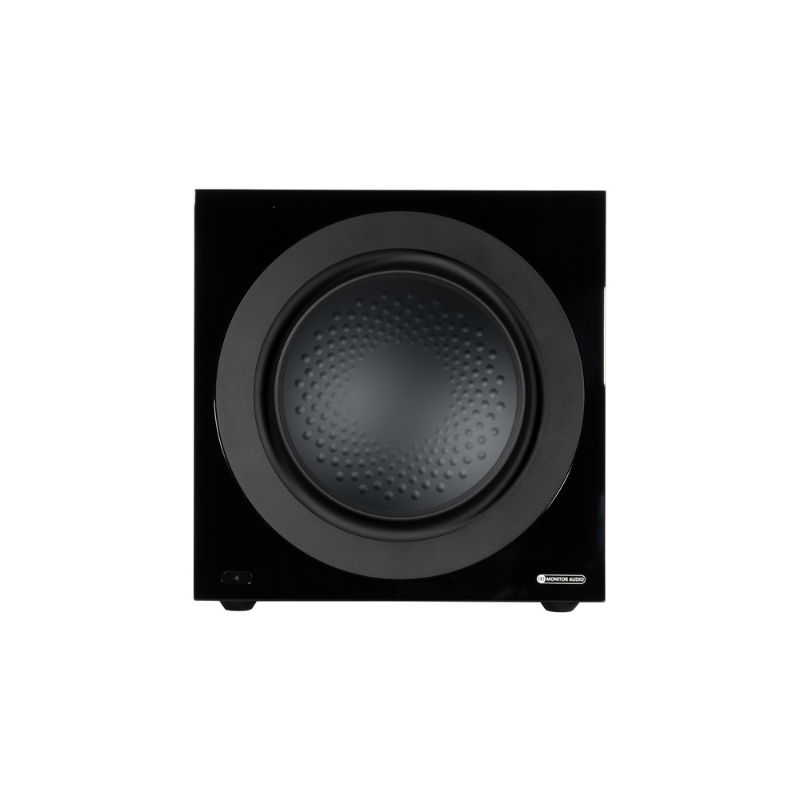

Monitor Audio Anthra W15 Subwoofer (each)

The W15 is the largest subwoofer within the Anthra subwoofer series. It features a 15” (38 cm) Rigid Surface Technology II (RST II) C-CAM high-excursion driver powered by a Class-D 1,500 Watt amplifier, housed within a comprehensively internally braced, sealed-box cabinet.

Engineered to deliver the deepest bass in the largest of spaces, the Anthra W15 subwoofer features a massively powerful 1,500 Watt Class-D amplifier driving a 15” (38cm) Rigid Surface Technology II (RST II) C-CAM high-excursion driver. The W15 can be used on its own or linked with up to three other Anthra subwoofers for a truly immersive, ultra-dynamic listening experience.

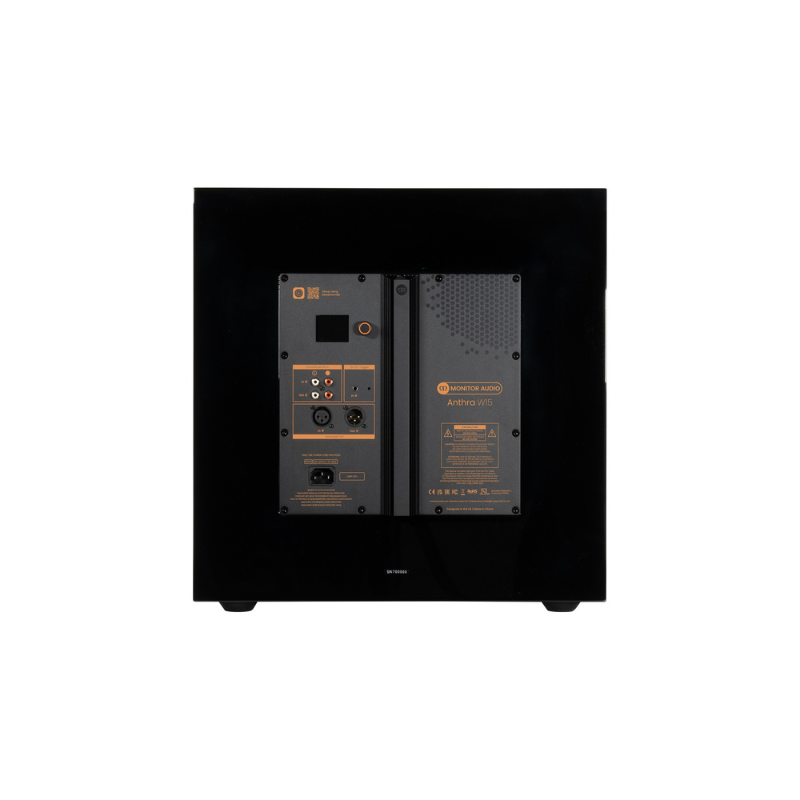

A full-colour LCD display and rotatory dial is located on the back panel, to allow for basic subwoofer setup and EQ preset selection, while advanced features including DSP configuration and multi-sub connectivity setup are available via the MaestroUnite app.

Specifications:

System Format
Active - Sealed Cabinet

Drive Unit Complement
1x 15" (381 mm) High Linear-Excusion Triple Suspension Driver

Amplifier Classification
High-Efficiency Class-D

Lower Frequency Limit
-6dB @16Hz

Upper Frequency Limit
(LPF Off) -6dB @400Hz

Driver Excursion (pk-pk)
50 mm

DSP
28 Bit 50 MIPS Configuratable through MaestroUnite

Analogue Digital Conversion
Autoranging Input which combines a 10Vrms maximum input with low signal to noise for small signals

Amplifier Output Power, 240Vac
Instantaneous: 2500 W*
Continuous short-term: 1400 W**

Amplifier Output Power, 120Vac
Instantaneous: 2500 W
Continuous short-term: 1400 W

LED UI Control
Brightness, On-Off

Phase Control
0-360 Degrees measured at LPF Crossover

Low Pass Filter
20-200Hz LPF with Roll off Adjustable from -3 to -48dB/Oct

Custom EQ
Configurable through MaestroUnite;3 pre-defined EQ curves plus 3 custom EQ curves each with 8 band custom EQ supporting (Peaking, High Shelf, Low Shelf, High Pass)

Volume Level
Wide adjustable input gain to allow maximum output from a wide range of input signals

Inputs
Stereo Unbalanced RCA (or mono/LFE using only connector marked LFE)
Mono/LFE Balanced XLR

Outputs
Stereo unbalanced outputs with unbuffered throughput from RCA Inputs
Mono/LFE Balaned XLR outputs with unbuffered throughput from XLR Input

Mains Input Voltage
Universal Mains, 85-265VAC

External Dimensions (without feet) (HxWxD)
439 x 439 x 439 mm

Power Consumption
550 W

Cabinet Construction
Braced 25 mm thick MDF with 36 mm front baffle

Grille
Cloth covered magnetically attached Grilles

Weight
40.3 kg

* Maximum RMS output for an instantaneous signal
