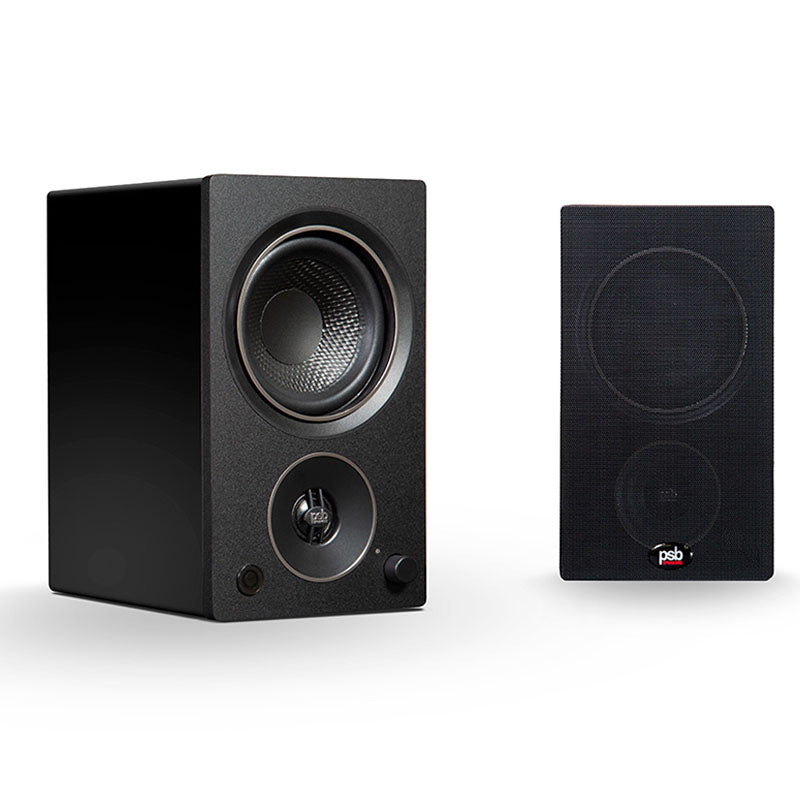

PSB Alpha AM3 - Compact Powered Speakers (Pair)

Behind the Alpha Series

First designed and manufactured in a small Canadian town in 1991, the Alpha Series started with the simple idea of creating affordable speakers that were focused purely on performance. With passion and dedication in pursuit of a natural sounding speaker, and by leveraging almost 50 years of research conducted at the Canadian National Research Council, the Alphas are known as one of the world’s most iconic speakers and are still the reference benchmark for entry-level hi-fi speakers today.

Versatile design

The AM3 is simple to set up and use – simply pair and play. Whether you want to stream music from your mobile device, connect to your TV or computer, or hook them up to a turntable via the dedicated RCA phono input, the AM3’s will deliver natural, detailed sound with precision and less distortion. Packed with surprising bass, the AM3 features a special 4” woofer and is driven by a 35 watt amplifier. Looking for even deeper bass? Add a subwoofer of your choice and get ready to fill your room with even more impressive sound.

Matched components, unmatched performance

Leveraging amplification expertise from our sister brands provided the PSB design team the considerable advantage of designing a speaker for a known amplifier. Add the power of DSP and suddenly the frequency response, bass extension and total output are optimized to a remarkable level of performance. Exceptionally few powered speakers share intellectual resources of this magnitude, making the Alpha AM3 a standout in the crowd of powered speakers.

Simple and Compact

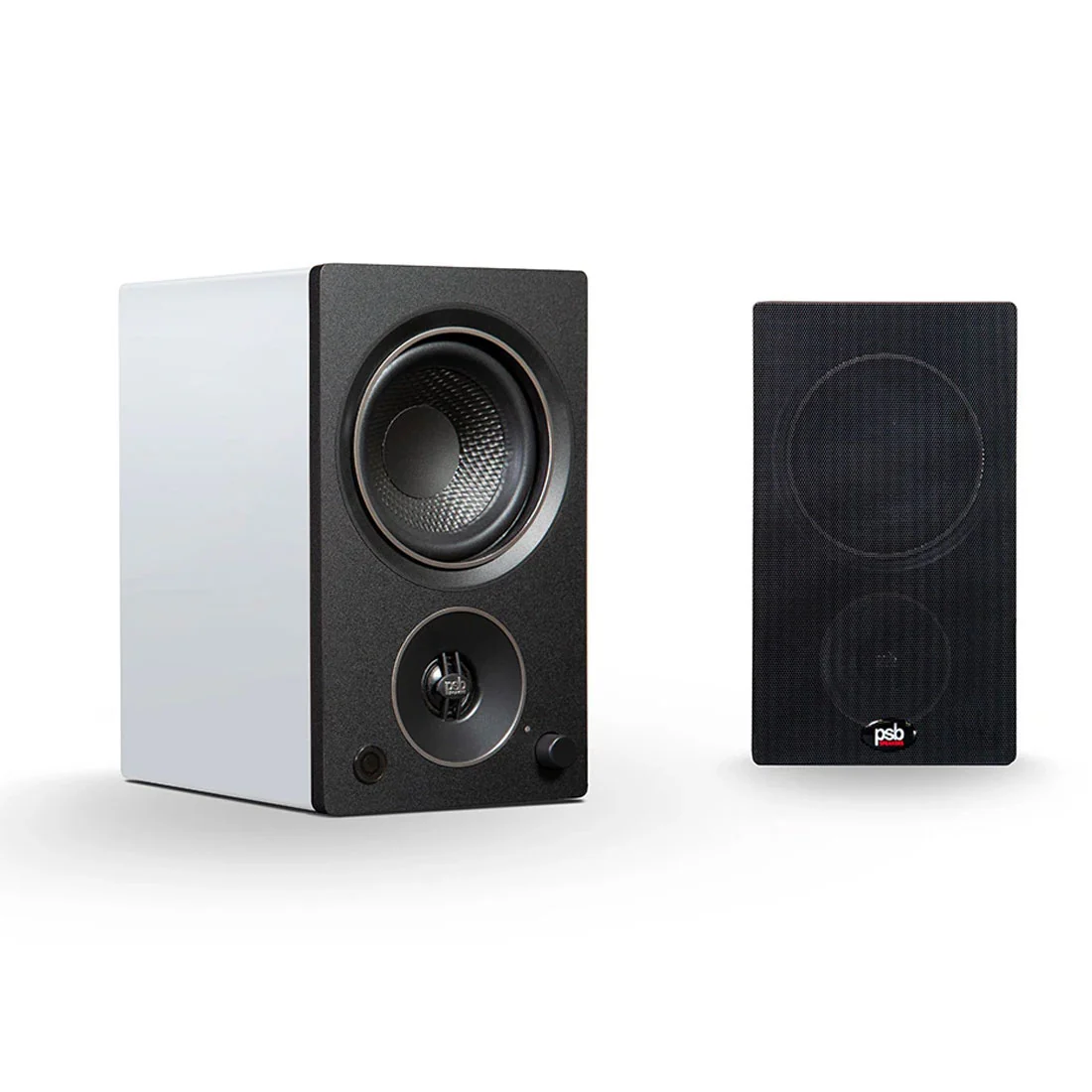

Featuring acoustically transparent detachable magnetic grilles in a choice of matte black or matte white finish, the AM3 offers a timeless design that will seamlessly blend into any décor. The compact size of the AM3 makes it the perfect system for a desk in your office, or a tabletop in your living room or bedroom.

• ¾” (19mm) aluminum dome tweeter with Ferrofluid and Neodymium Magnet
• 4” (100mm) woofer with rubber surround
• Qualcomm aptX™ Bluetooth
• Dedicated RCA phono input
• Subwoofer output
• Bass reflex cabinet design
• Acoustically transparent detachable magnetic grilles

SPECIFICATIONS

FREQUENCY RESPONSE

On Axis @ 0° ± 3dB - 56Hz-20Khz

LF Cutoff -10dB - 40Hz

AMPLIFIER POWER - 35 watts x 2 RMS

ACOUSTIC DESIGN

Tweeter (Nominal) - 3/4″ (19mm), Aluminum Dome with Ferrofluid

Neodymium Magnet

Woofer (Nominal) - 4″ (100mm) Cone,

Rubber Surround,

Steel Basket

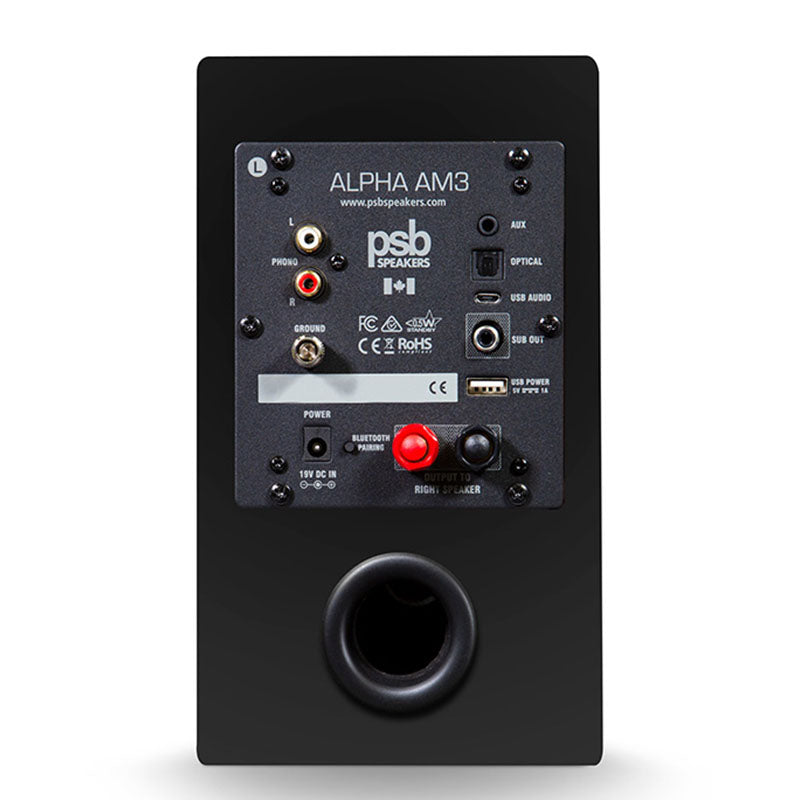

INPUTS

Analog - 3.5mm, Phono MM

Digital - Optical, USB

Wireless - aptX™ Bluetooth

Design Type - Bass Reflex

CONSTRUCTION

Cabinet - MDF

Cabinet Sleeve - Vinyl

Baffle Front - MDF

Grille - Perforated Metal

SIZE (W x H x D)

Net Dimensions - 5 1/8” x 8 5/8” x 6 7/8” (130 x 220 x 174mm)

Net Weight - 10 lbs (4.5 kg)

Shipping Dimensions - 14 1/8” x 9 7/8” x 11 1/2” (359 x 251 x 292mm)

Shipping Weight - 11.7 lbs (5.3 kg)
