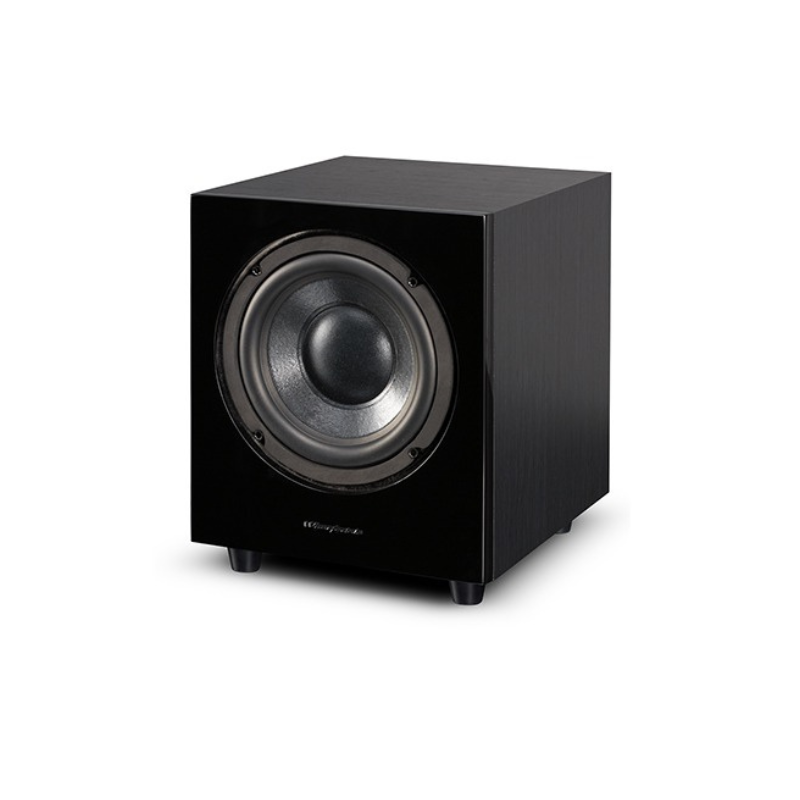

Wharfedale WH-D10 Subwoofer (Each)

 Aside from newly improved aesthetics, the two new subwoofers are built to elevate the performance of any AV setup. The D10 features an active dynamic drive subwoofer system in a sealed box, providing fast, accurate and intensive bass response. The D10 also employs a custom designed class-d balanced drive power amplifier which provides power and dynamics unheard of in products at a comparable.

Key Features

• Low pass filter slope continuously adjustable from 40Hz – 150Hz
• Phase invert switch
• Low-frequency bass extension (below 30Hz), with a wide 86dB dynamic range
• Low-level inputs, dedicated LFE input
• Auto power sensor

Specifications

Description/Format

Active Dynamic-Drive IB Subwoofer System

Drive Units:

• 1 x 10" (250mm) cone long-throw

Performance:

• Frequency Response (+/-3dB): 35Hz - 150Hz
• Amplifier Power Output: 150W
• Peak Power Output: 300W
• Line Input Sensitivity: 100mV for maximum output
• Crossover Range: 30Hz - 150Hz
• Signal-to-Noise Ratio: >85dB
• Avg. Max Output @1m: 110dB

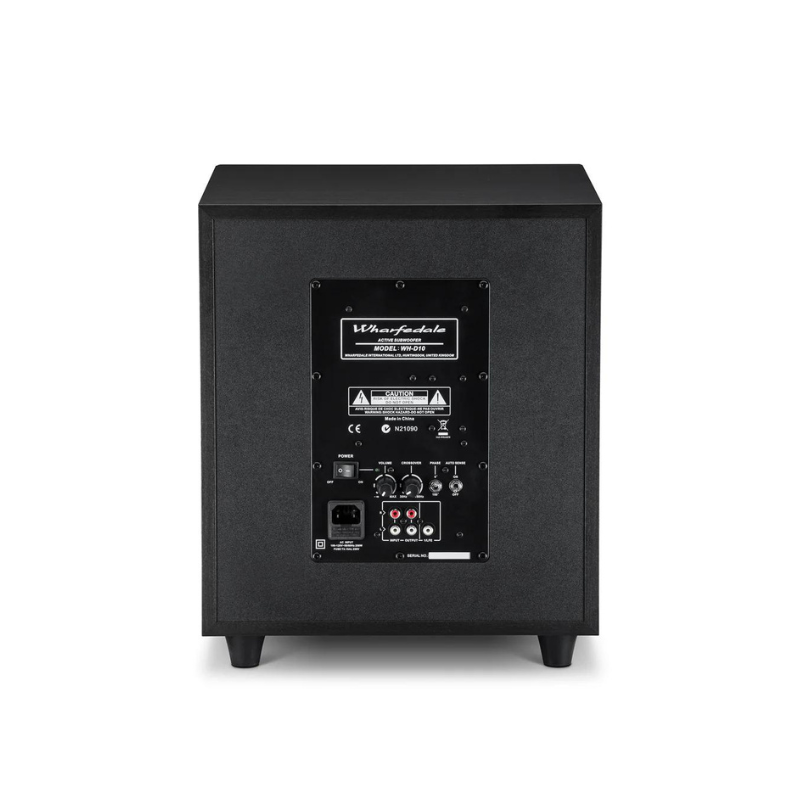

Inputs:

• Stereo Line In (2 x RCA Phono)
• Mono (LFE) Line In (RCA Phono)

Input Impedance:

• Line In 10kOhms
• LFE 5kOhms

Features:

• Low pass filter slope adjustment
• Phase inversion
• Auto on/off
• High pass output

Dimensions (mm):

• 363 (+30) x 333 x 372 (+22)

Weight:

• Net Weight: 14kg
• Gross Weight: 16.5kg

Accessories:

• IEC power cord
• Spikes (included as standard)
